CHMT48VB + Vibration feeder

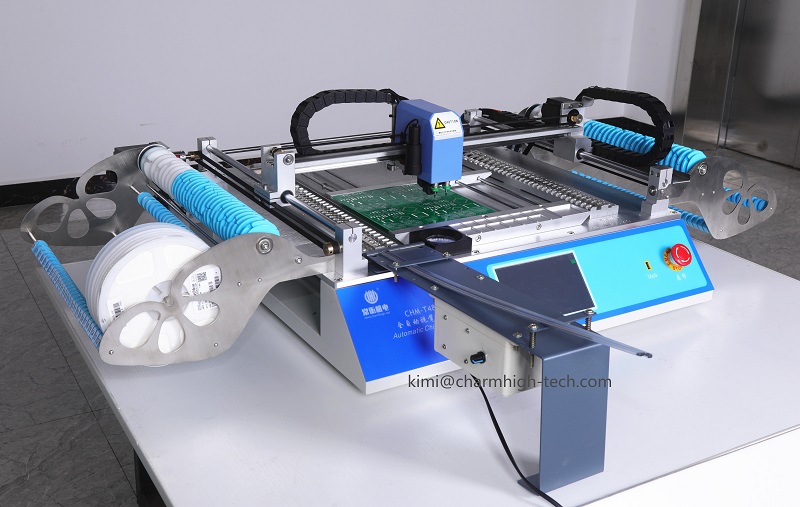

Double side feeder ( 58pcs feeders) Charmhigh Benchtop SMT Pick and Place Machine
110v 220V English Version CE Passed
Description:

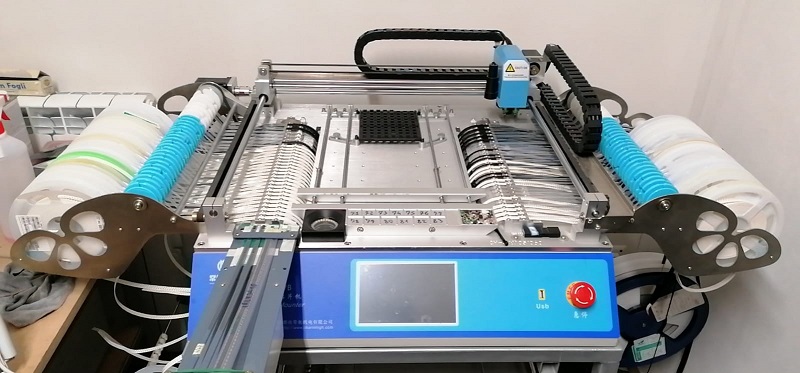

This CHMT48VB is an update version of CHMT48VA, which included dual side feeders with total 58pcs (left 29pcs + right 29pcs).
The operation system is the same as CHMT48VA and it can install more different kinds of materials, using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP,QFN,LQFP,Diode,Transistor,BGA...etc, which can meet more customers' demand.
| Model | CHM-T48VB |
| PCB area | 10mm*10mm - 355mm*355mm |
| X Y axis Travel | 420*460mm |
| Z axis moving range | 15mm |
| Placement heads | 2pcs |
| Feeders | Left 29pcs + right 29pcs |
| Vision system | Dual cameras (up & down cameras) |
| Drive | Closed-loop control stepper servo drive system, make sure never lose step |
| Z axis self-return detection | Yes, prevent nozzles breaking |
| Pull pin self-return | Yes |
| Leakage of material detection method | Vacuum detection, vision detection |
| Touch screen | 7”industry touch screen |
| Main board | Independent research industry main board |
| System | Embedded Linux system |
| Mounting speed | 5000cph (vision off); 3000cph (vision on) |
| Mounting precision | ±0.025mm |
| Components | 0402-5050,SOP,QFN (tape width: 8MM,12MM,16MM,24MM) |
| Machine dimension | L 960mm* W 705mm* H 335mm |
| Vacuum pump | -92KPA (2pcs,build-in, mute type) |
| External air source | No need (machine build-in mute vacuum pump 2pcs) |
| External PC | No |
| Voltage | 220V (110V), 50Hz |
| Net weight | 68kg |
| Gross weight | 82kg / 150*80*52cm / 0.62m³ |
Competitive Advantage:
1. Convenient software, Embedded Linux System of the machine, stable industry main board, independent operation, no need external computer, operation easier and more convenient, learn fast.
2. In-build touch screen, no need external monitor, room saved, more convenient operation, USB mouse supported as well.
3. Top and bottom two vision cameras, correct the position of each components, you can view the vision image from screen for every components.(max component size 22*22mm)
4. It has flexible PCB clamping fixture, suitable for different size of PCB.

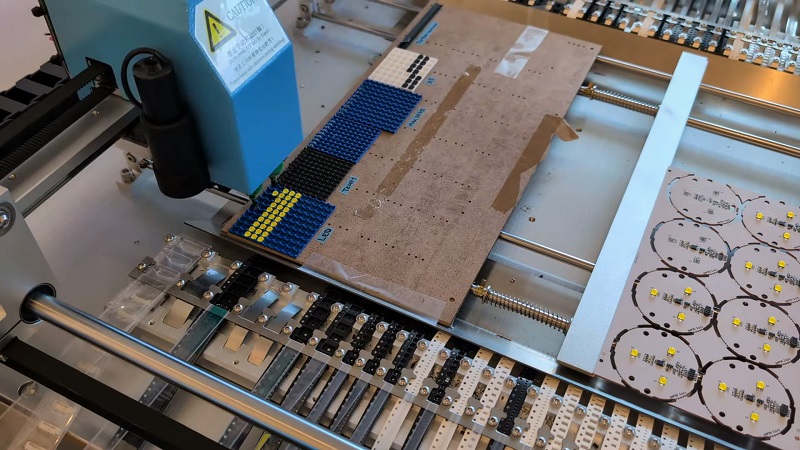

5. It supported custom IC tray, IC tray can be fixed on machine table.
6. Two mounting heads with 2pcs Juki Nozzles, Juki nozzle inside magnet, so it can be removed by finger, no need to disassemble with wrench, nozzles rotation angle -180 degree to +180 degree.
7. All-in-one machine, 29pcs feeders included in machine, no need to buy other parts, machine is ready to work.
8. Z axis detection, machine's pull needle automatically return to origin to avoid nozzles broken.
9. Max height component support 5mm.
10. Closed-loop control, X,Y Axis with encoder, not out of step.
11. PCB calibrated by two components position, then rest components will be calibrated automatically.
12. With vacuum detection, with automatic feeding, if one component suck crooked, it will automatically throw it to deposit area, then pick a new one to mount again.
13. With vision detection, camera will auto correction component angle and place on PCB board right place. If heads not picking up components, camera will detect it and go back to pick again, 3 times not picking, machine will alarm and stop, after supply material, then continue working, no need to start over again.
14. Comes with convert tool (PC version), edit work file in computer and load work file into machine by USB port, quick and convenient.
15. Support panelized boards.
16. If you don't have PCB file, you can create a new work file to program in machine directly.
17. Support single step.
18. Support cut tapes/ bulk material/ tube material.
Standard Accessories for CHMT48VB:
1) Pick and Place Machine CHMT48VB 1
2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
3) 8G USB driver 1
4) Power Cord 1
5) Pull needle 2
6) Coil for pull pin1
7) Camera positioning adjust black board 1
8) Hex wrench 6
9) Tweezers 1
10) Brush 1
11) Pen for touch screen 1
12) Fixture for IC tray
13) Grease 1
14) English user manual 1

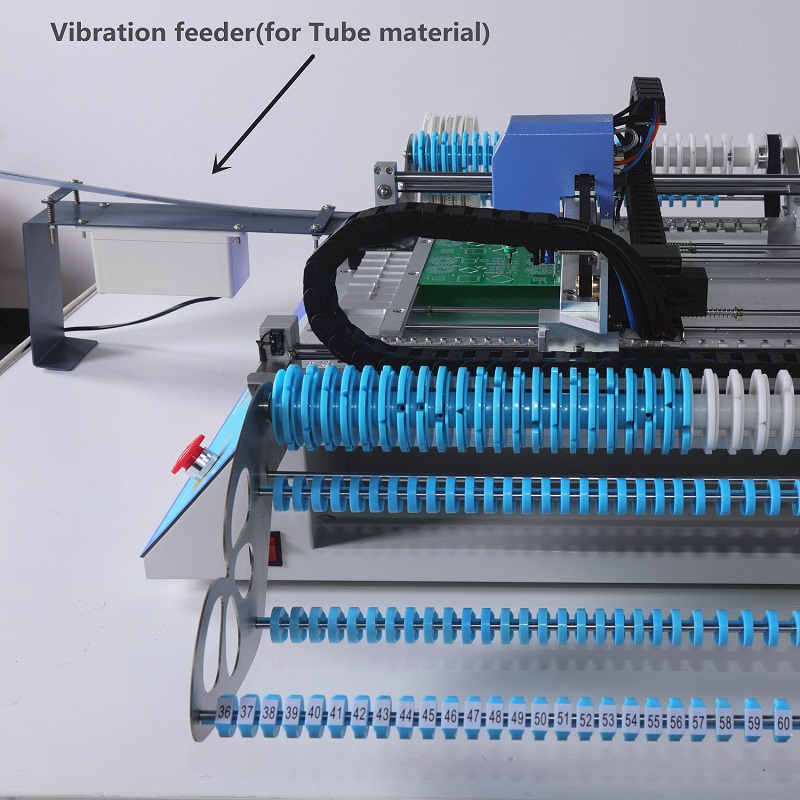

15) Vibration feeder* 1
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support & Contact:
Kimi Liu
Charmhigh Technology Limited
Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us in YouTube: www.youtube.com/c/KimiLiuCharmhigh/videos
If you want to see more information and videos, please contact us by E-mail.
We will response you at the first time.
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
