Dual Side Feeder CHMT48VB Desktop SMT Pick and Place Machine (left 29pcs + right 29pcs)

With built-in Industry board with Embedded Linux system. Best Seller!
All-in-one mahcine, room saved, very good for small batch production, protopyting, researching, eduction etc.

Introduction:

1. Model number: CHM-T48VB
2. Brand: Charmhigh
3. Main configuration: Desktop type + All -in-one machine + Two vision cameras + Embedded Linux system + 2 Heads 58 tape feeders + Closed-loop control motor with encoder + Touch screen(USB mouse also supported)
4. Max PCB area: 345*355mm
5. Component: 0402-5050, SOP, QFN, QFP, BGA etc.
6. Dimension: 1320mm(L)×750mm(W)×335mm(H), AC220V/110V (50/60Hz)
7. Lead time: 1-3 working days(In stock)
8. Delivery: by DHL express door to door, total takes 6-9 days.
9. Payment method: wire transfer (T/T); PayPal; credit card; W/U
10. Packing: plywood box
11. HS code: 8479.89.62.00 (Pick and place machine)

Description:

The CHMT48VB is a low cost good accuracy two heads desktop sized pick and place machine from Charmhigh. It has more feeders compare to 48VA model. It can install more different kinds of tapes on machine.
You can use it to produce a variety of designs, 50 to 100pcs at a shot. It works very well for low-volume high-mix pick and place of 0402 based designs.

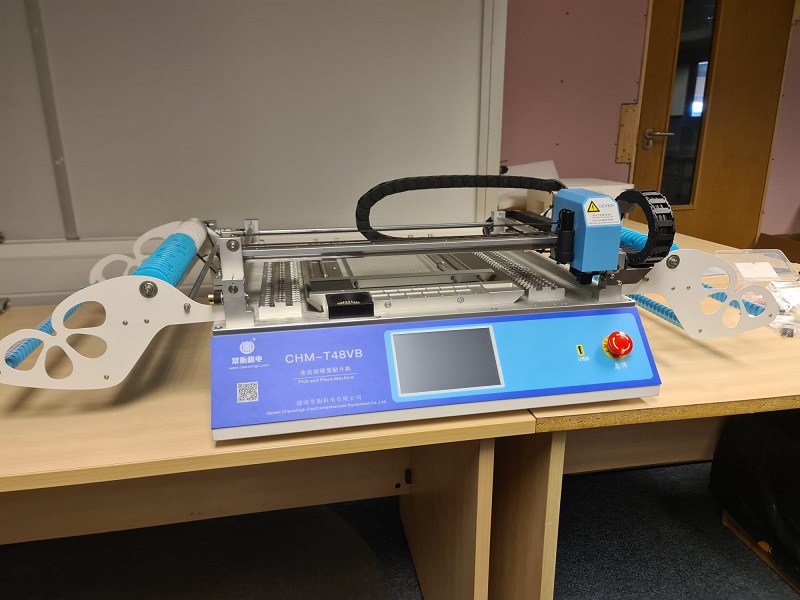

CHMT48VB is a vision-based desktop pick and place machine which is using embedded Linux system, you can use this machine without external computer, very stable and operation very convenient.

It is very reliable with low-cost economic model with high precision and easy to learn. It compatible with all different kinds of components 0402-5050,SOP, QFN, QFP... very suitable for for prototype builders, hobbyists, developers, and development groups and small batches production.

CHMT48VB compatible software: Altium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS..etc. As long as the software can generates the X.Y coordinates.

Youtube working video:

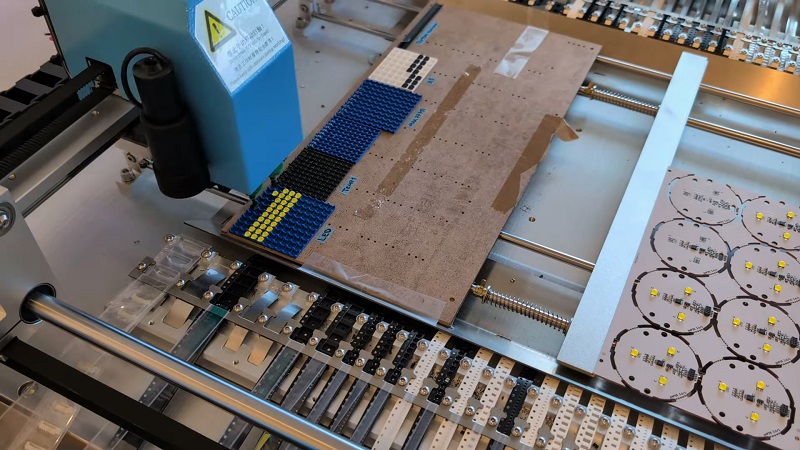

CHMT48VB production video from customer:

www.youtube.com/watch?v=LjGCP9bvGNc

www.youtube.com/watch?v=YjPGfoU1Ijo

www.youtube.com/watch?v=xF7N4crTOtQ

Specifications:

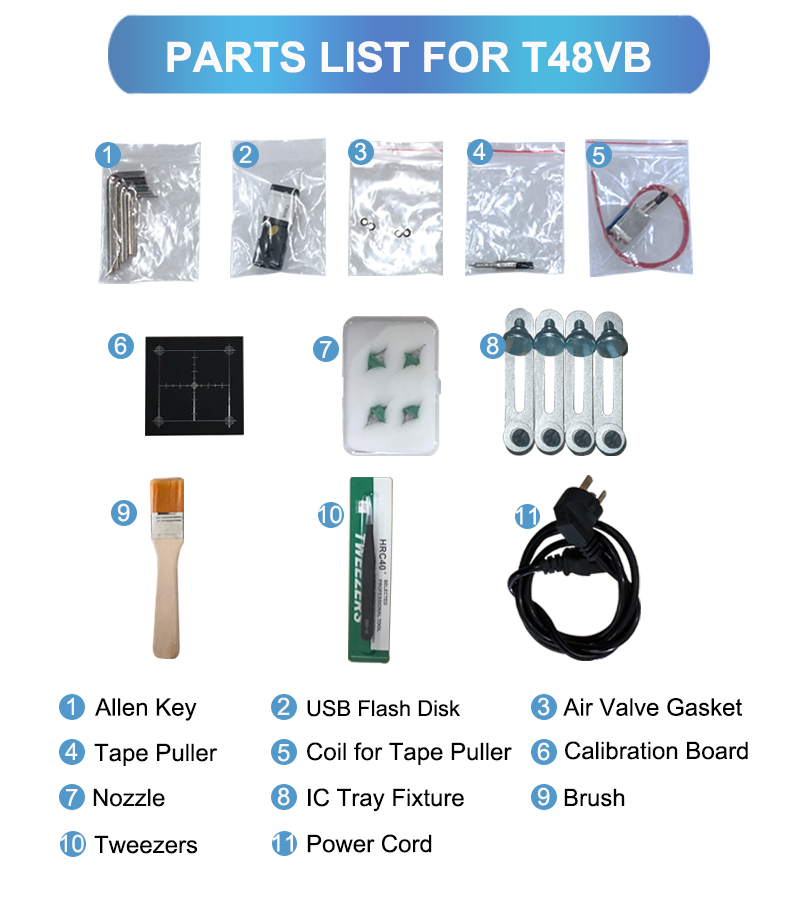

Standard packing list for CHMT48VB:

1) Pick and Place Machine CHMT48VB 1
2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
3) 8G USB driver 1
4) Power Cord 1
5) Pull needle 2
6) Coil for pull pin1
7) Camera positioning adjust black board 1
8) Hex wrench 6
9) Tweezers 1
10) Brush 1
11) Pen for touch screen 1
12) Fixture for IC tray 4
13) Grease 1
