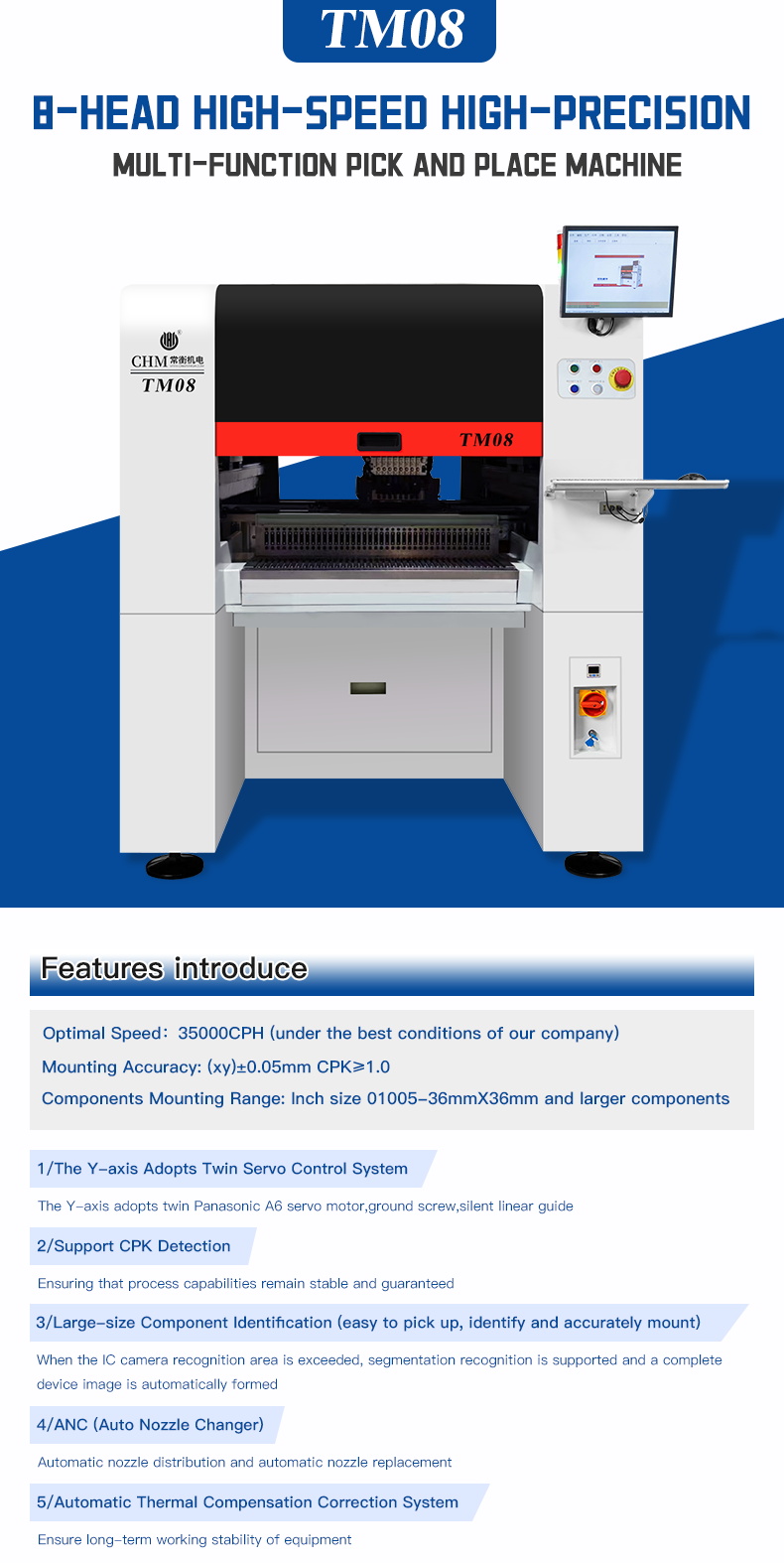

High speed high accuracy Charmhigh TM08 (8 heads, 80 feeders) CPK≥1.0
Full-automatic SMT production line, for large PCB assembly line
Main configuration:
1. Model number: TM08
2. Brand: Charmhigh
3. Main configuration: Full-automatic type + 3-section-rail automatic conveying + 8 Heads 80 feeders + Panasonic servo motor + auto nozzle changer + 11 cameras + THK Grinding screw + CPK detection ≥1.0
4. Feeder: Fuji Electric feeder (feeders purchase separately)
5. PCB area: 450*350mm
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
8. Dimenssion 1280 (L) * 1580 (W) * 1500 (H)mm, AC220V (50Hz, single phase), 3.5kW
9. Lead time: 3-7 working days
10. Delivery: by sea / pick up from our factory directly / ship to your warehouse in China
11. Payment method: wire transfer (T/T)
12. Packing: plywood box (net weight: 1600kg; G.W 2000kg)
13.HS code: 8479.89.62.00 (Pick and Place machine)
Charmhigh TM08 parameters:
| Dimensions | 1280mm(L)x1580mm(W)x1500mm(H) |
| Weight | 1450kg |
| Power Supply | AC220V (50Hz, single phase), 3.5kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 8 |
| Mounting Speed | 35000cph (optimal) |

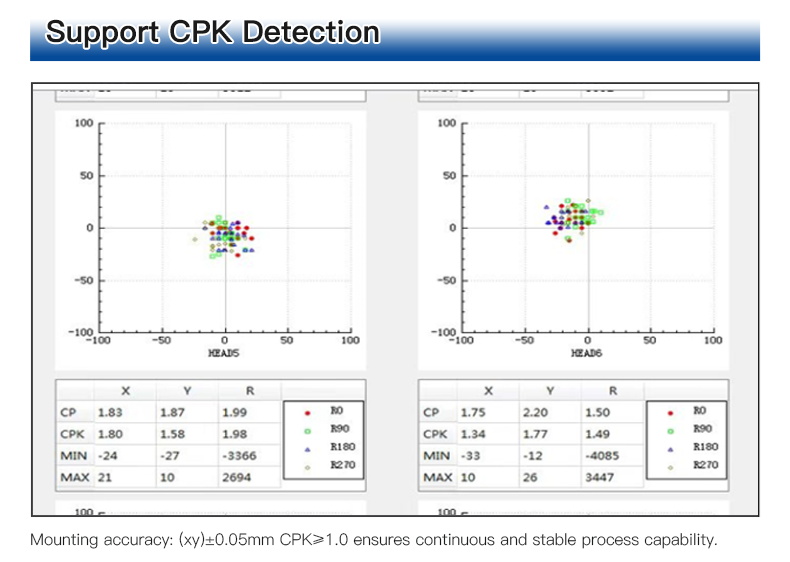

| Mounting Accuracy | ±0.05mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 450mm(L)x350mm(W) (standard); 1200mm(L)x350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support device |

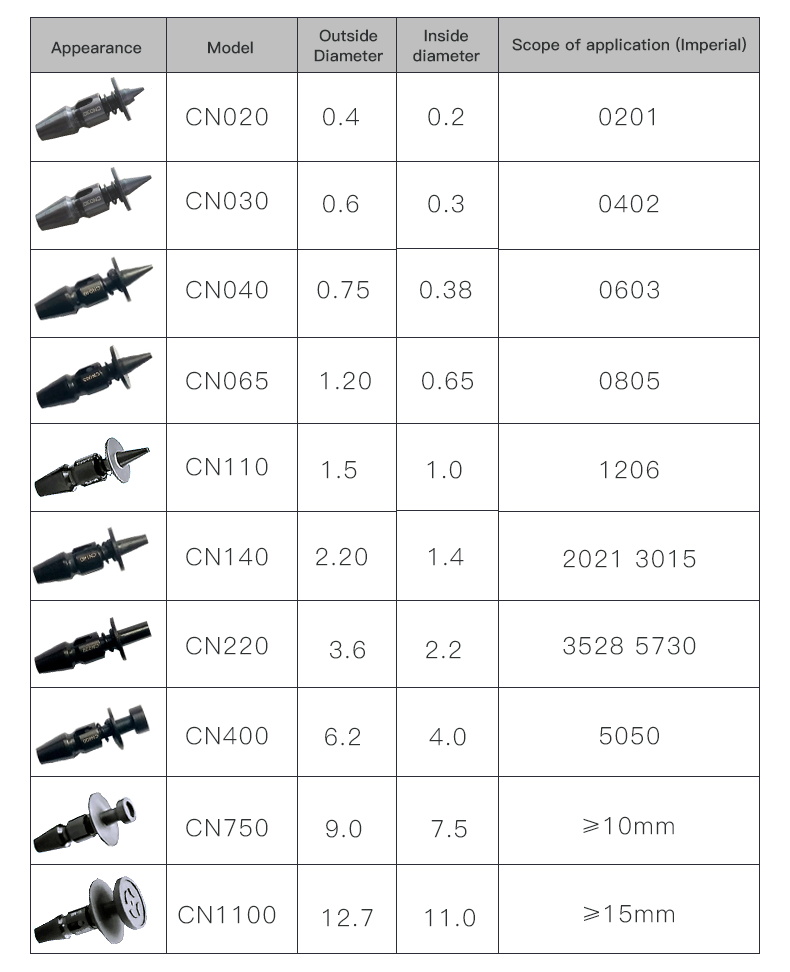

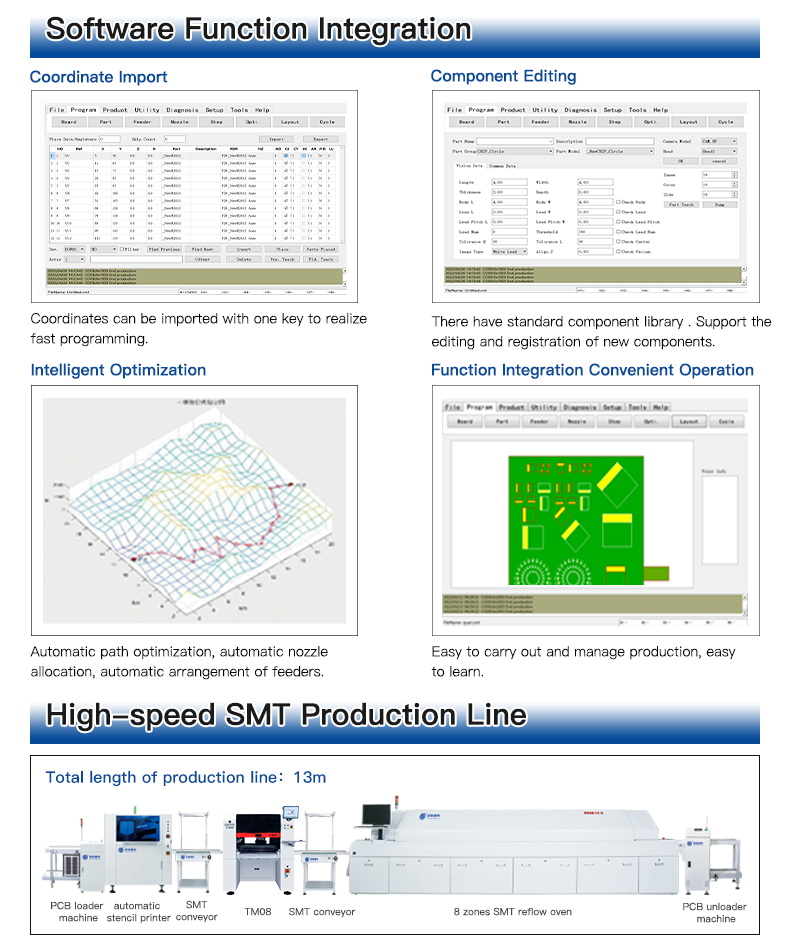

| Nozzle Change | Automatic nozzle change (31-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting ground screw and mute linear guide (Y axis with double screws) |

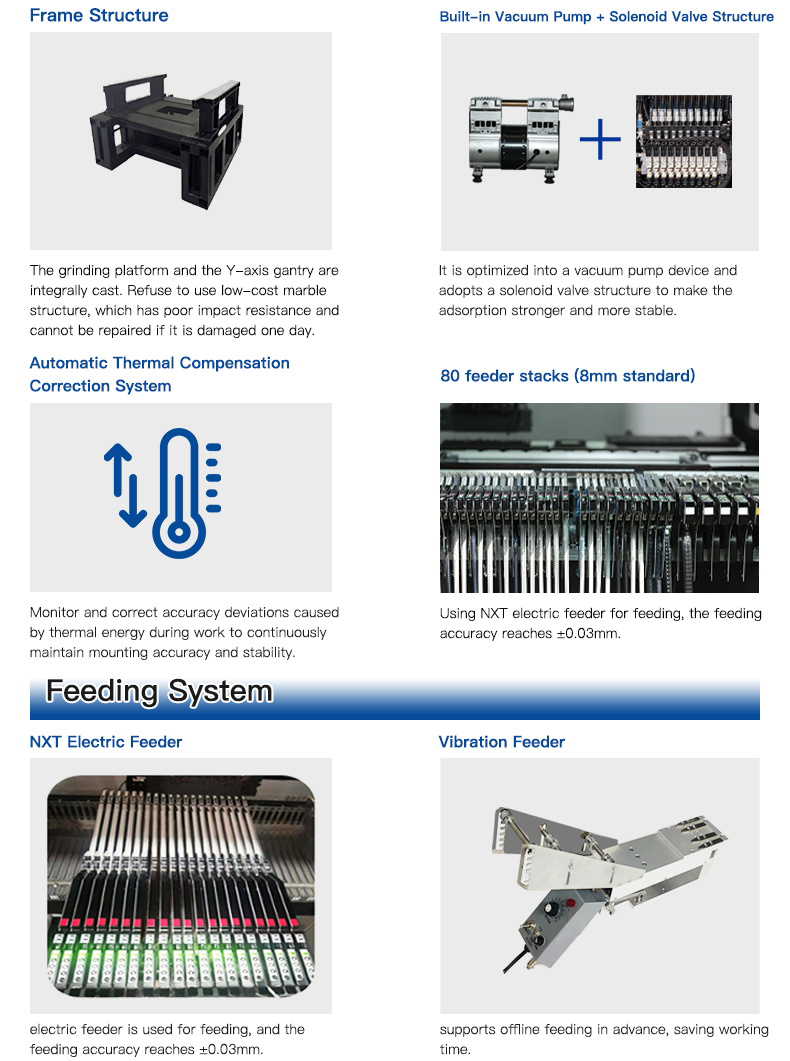

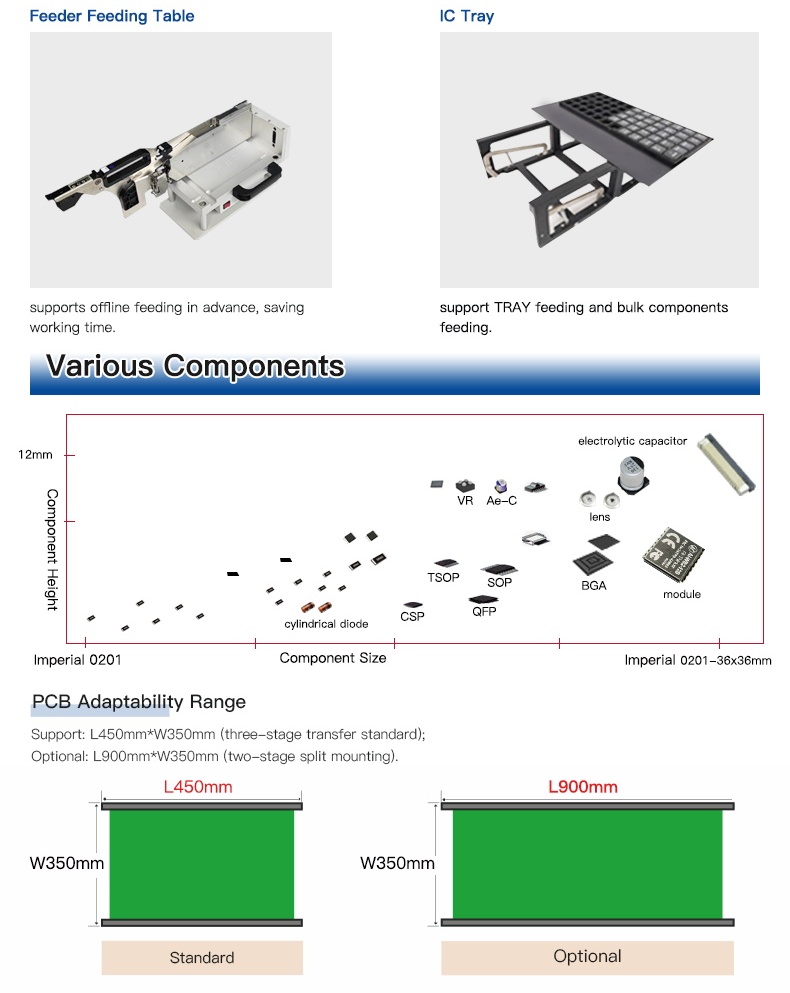

| Feeding System | 80 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |

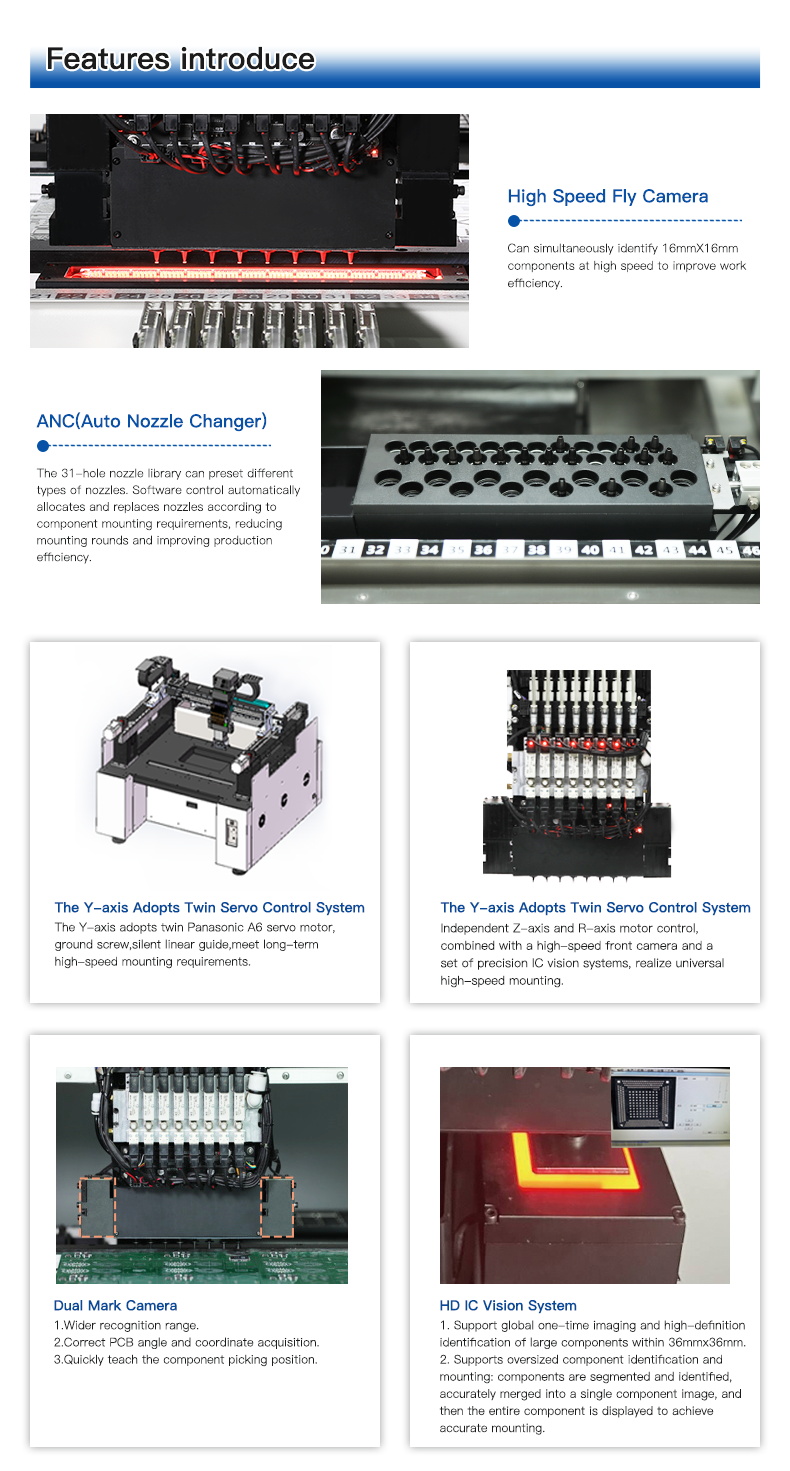

| Vision System | Fly camerax8 (component size applicable: 16mmx16mm); IC camerax1 (component size applicable: 36mmx36mm); Mark camerax2 |
Option: 8mm/ 12mm/ 16mm/ 24mm/ 32mm
8.One machine equal to 5 soldering staff, easy manage and cost-saved. Good for small batch production.
9.Charmhigh Is factory supply, all of our machines parts are researched and manufacturing by ourselves. After-service spare parts never stop.
10. Charmhigh is a professional manufacturer of SMT Pick and Place machine since 2009. All the software are researched by ourselves.
Tech support & Contact:
Kimi Liu
Charmhigh Technology Limited
Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: tim@charmhigh-tech.com
Welcome to follow us on YouTube: www.youtube.com/kimiLiuCharmhigh
If you want to see more information and videos, please contact us by E-mail.
We will reply as soon as possible.
High speed high accuracy Charmhigh TM08 CPK≥1.0
8 Heads 100 feeders High Speed Full Automatic SMT Pick and place Machine
SMT production line - for large batch production
Main configuration:
1. Model number: TM08
2. Brand: Charmhigh
3. Main configuration: Full-automatic type + 3-section-rail automatic conveying + 8 Heads 80 feeders + Panasonic servo motor + auto nozzle changer + 11 cameras + THK Grinding screw + CPK detection ≥1.0
4. Feeder: Fuji Electric feeder (feeders purchase separately)
5. PCB area: 450*350mm
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
8. Dimenssion 1280 (L) * 1580 (W) * 1500 (H)mm, AC220V (50Hz, single phase), 3.5kW
9. Lead time: 3-7 working days
10. Delivery: by sea / pick up from our factory directly / ship to your warehouse in China
11. Payment method: wire transfer (T/T)
12. Packing: plywood box (net weight: 1600kg; G.W 2000kg)
13.HS code: 8479.89.62.00 (Pick and Place machine)
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
