Shipping calculated at checkout.
DHL free shipping door to door!

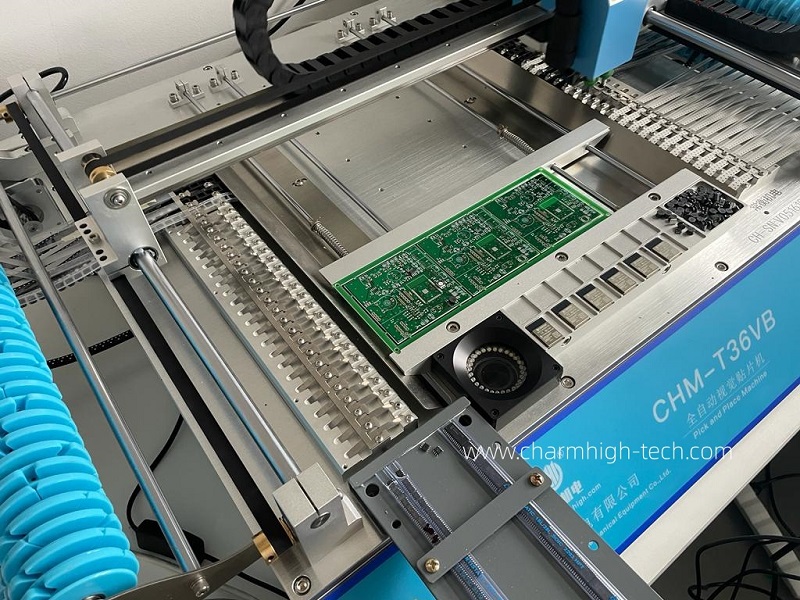

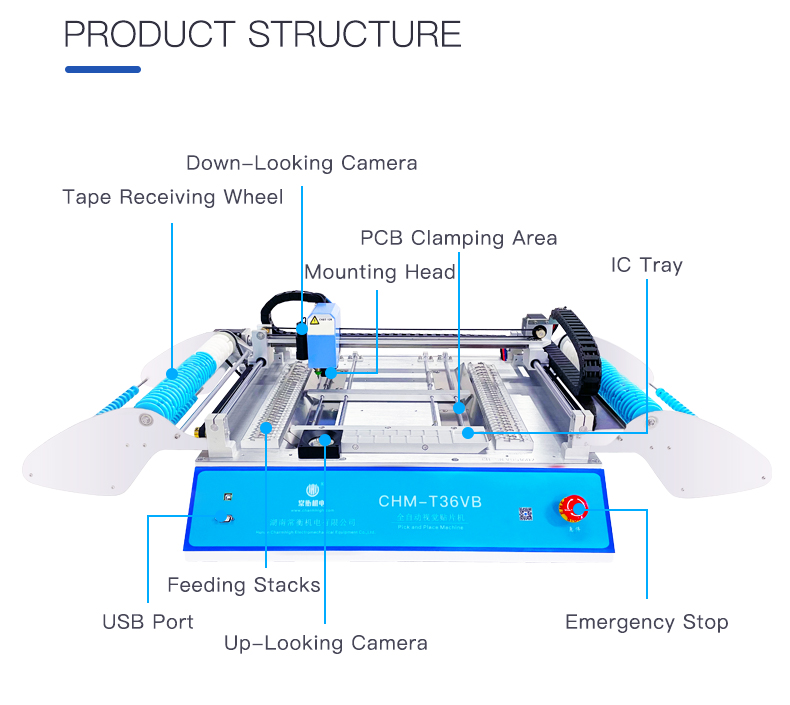

Charmhigh (CHMT36VB) pcb component assembly SMT Pick and Place Machine Ecnomic Model
Updated from CHMT36VA, External PC control, windows system, dual side 58 feeders, 2 vision cameras
+ vibration feeder(tube feeder, stick feeder, for tube material) English language, 220v 110v
Very good for small batch production, low volume production, protopyting, researching, eduction etc.
Specifications:
Model | CHM-T36VB |
PCB area | 10mm*10mm - 345mm*360mm |
X Y axis Travel | 420*460mm |
Z axis moving range | 15mm |
Placement heads | 2pcs |
Feeders | 8mm=44pcs, 12mm=8pcs, 16mm=2pcs, 24mm=2pcs, |

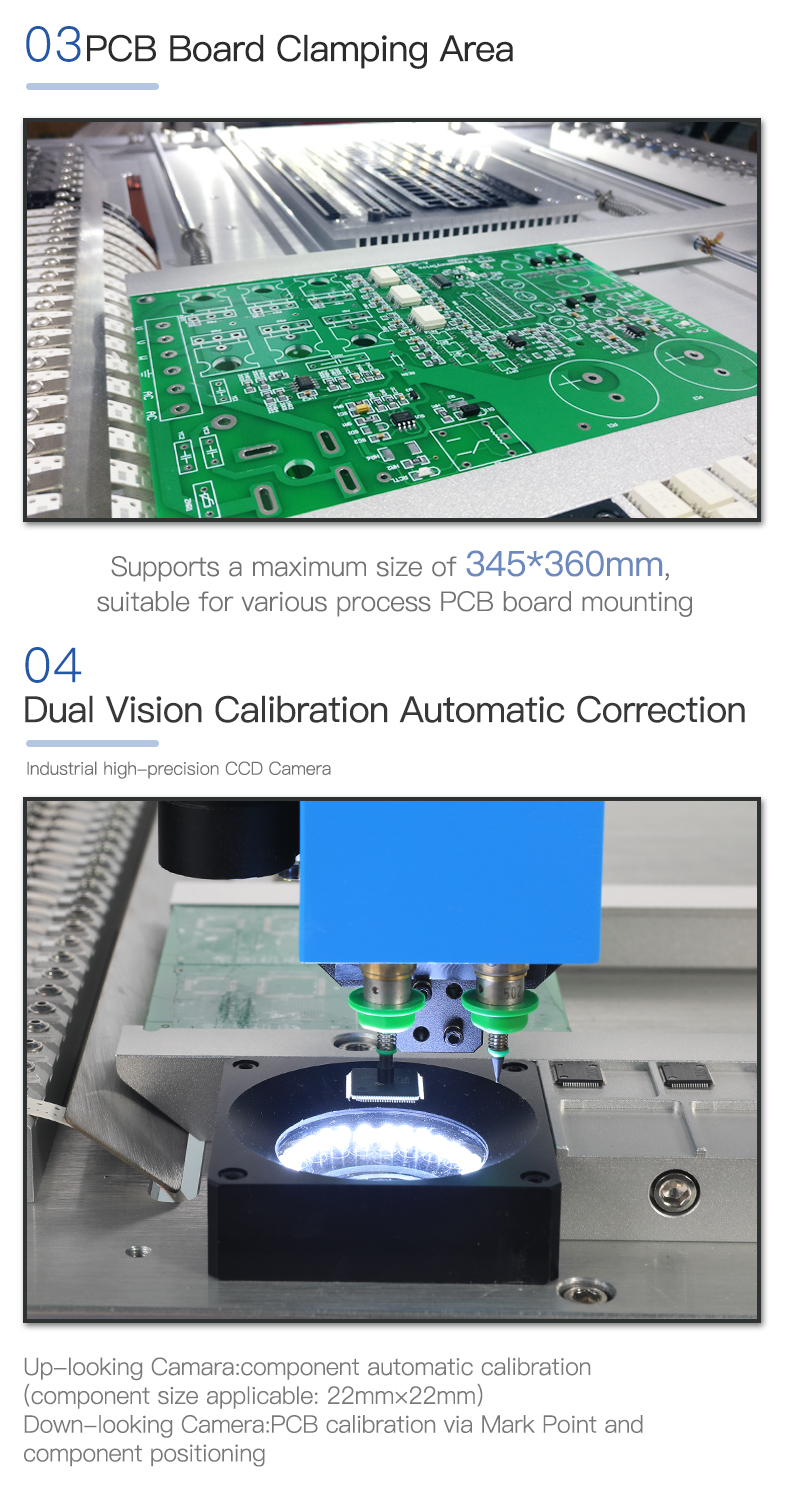

Vision system | Dual cameras(up & down cameras) |
Drive | Closed-loop control stepper servo drive system, make sure never lose step |

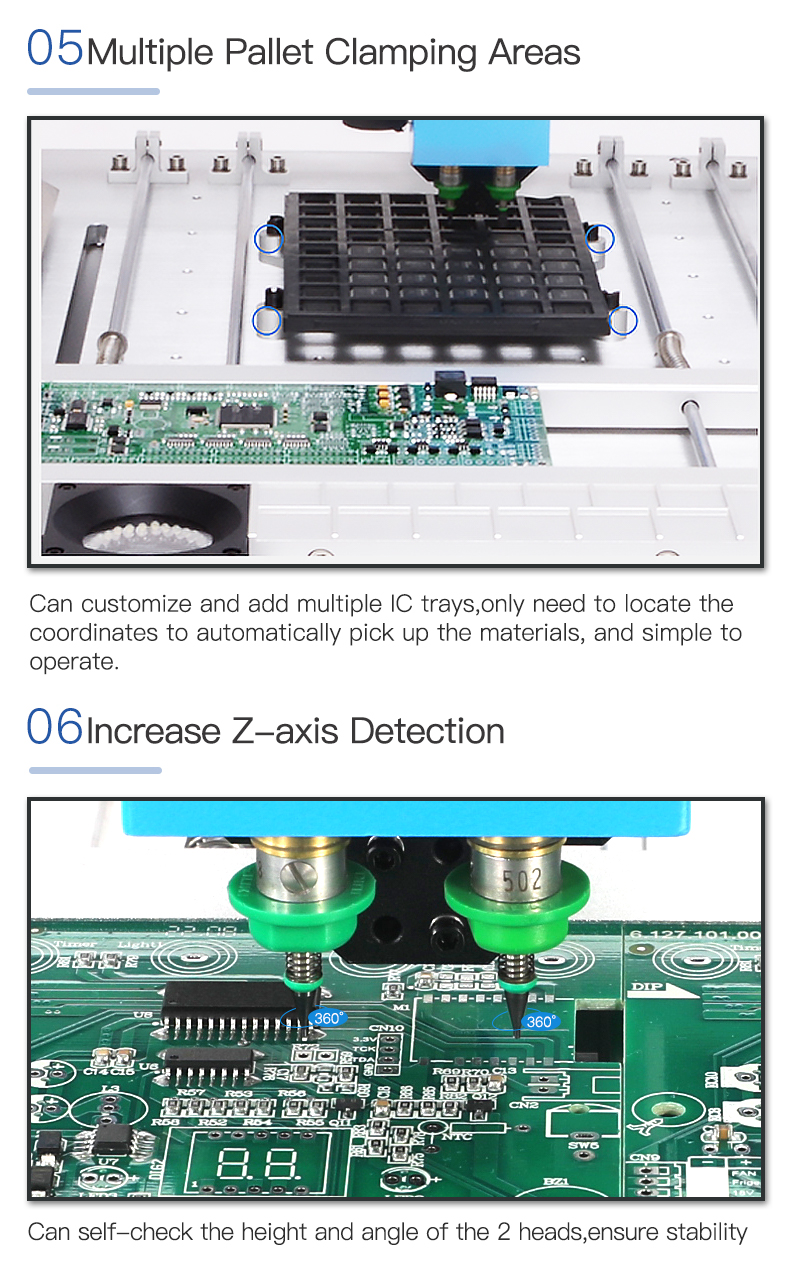

Z axis self-return detection | Yes, it prevent nozzles breaking |
Pull pin self-return | Yes |
Leakage of material detection method | Vacuum detection, vision detection |
Mounting speed | 4000cph (vision off); 2800cph (vision on) |
Mounting precision | ±0.025mm |
Components | 0402-5050,SOP,QFN,QFP (tape width: 8MM,12MM,16MM,24MM) |
Machine dimension | L 1310mm * W 710mm * H 340mm |
Vacuum pump | -92KPA (2pcs,build-in, mute type) |
External air source | No need (machine build-in mute vacuum pump 2pcs) |
External PC | Yes (software compatible with windows7,windows10) |
Voltage | 220V (110V),50Hz/60Hz |
Net weight | 50kg |
Gross weight | 80kg |

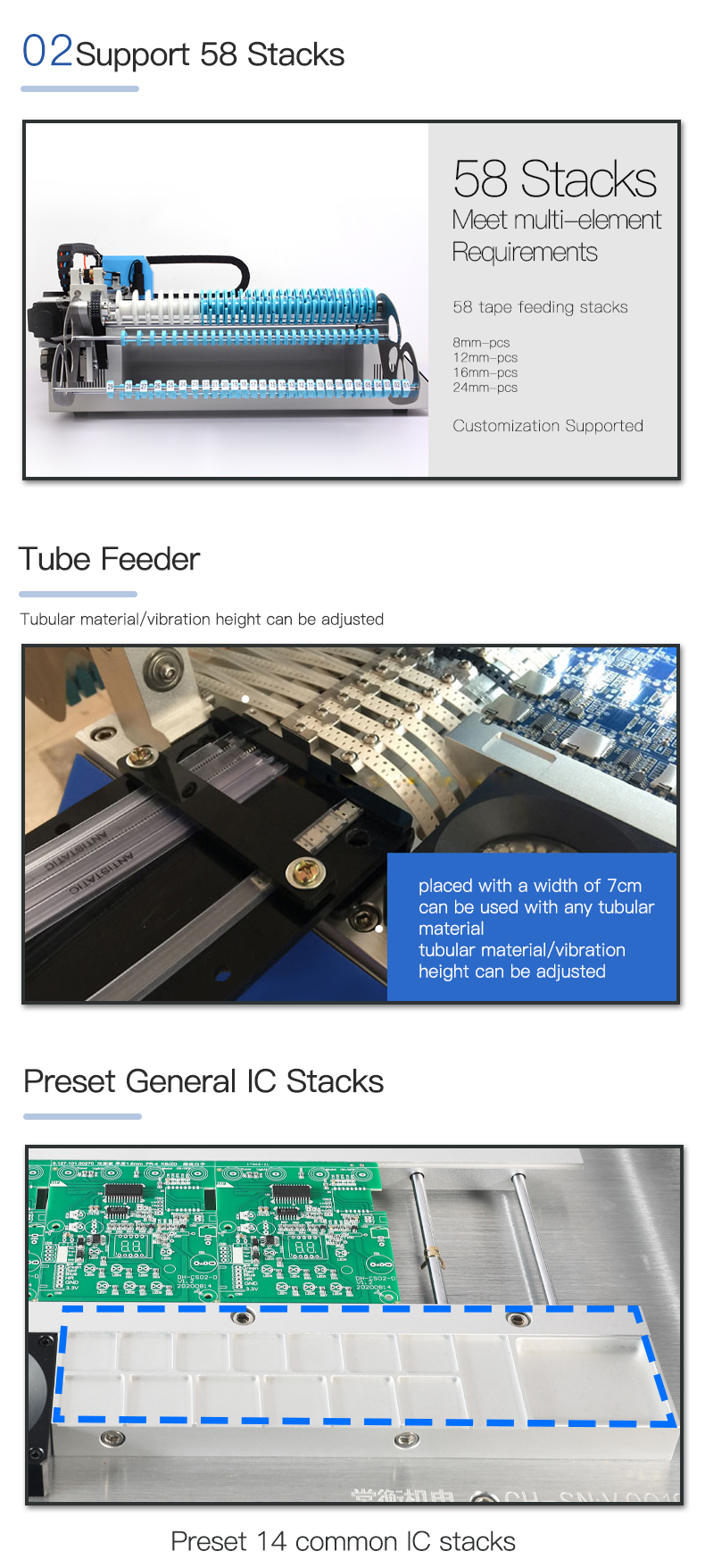

CHMT36VB with vibration feeder:

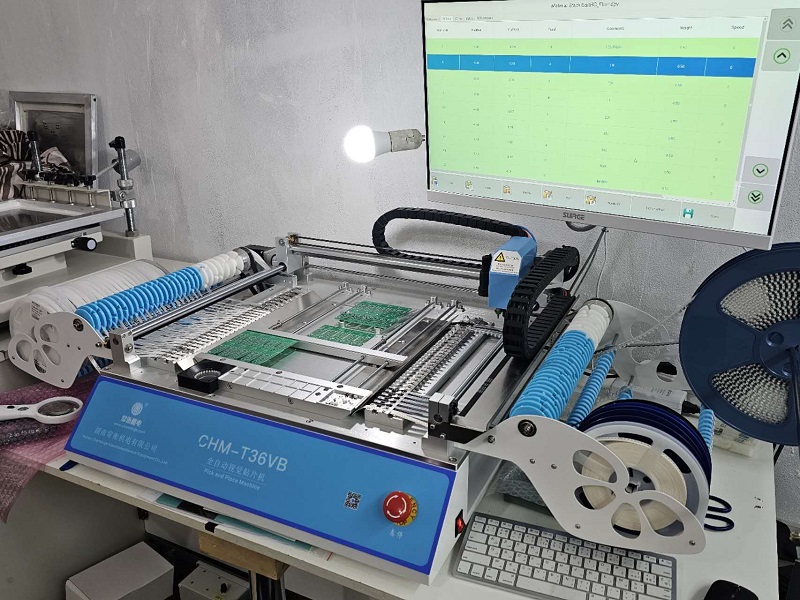

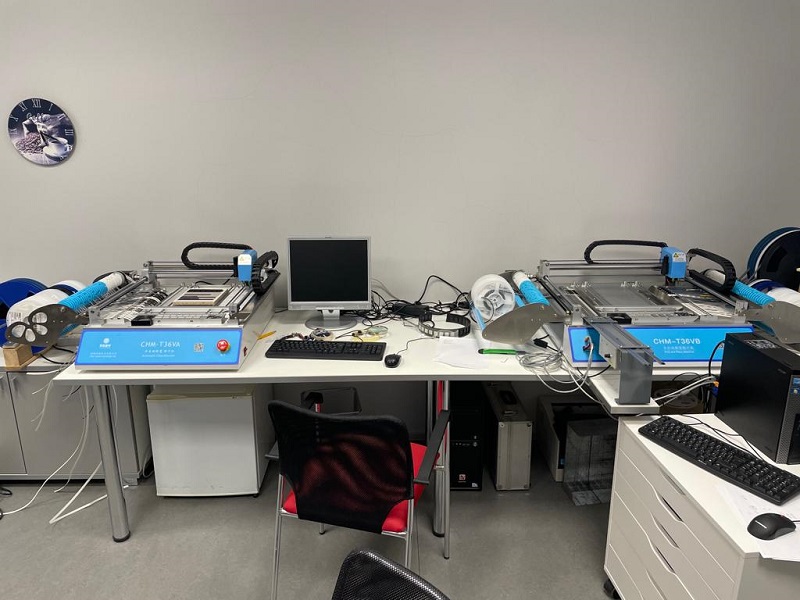

Customer feedback:
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
