This link TM06 pick and place machine unit price $18500 (not including shipping)
It will be shipped by sea, please contact us for more shipping details, our e-mail: kimi@charmhigh-tech.com

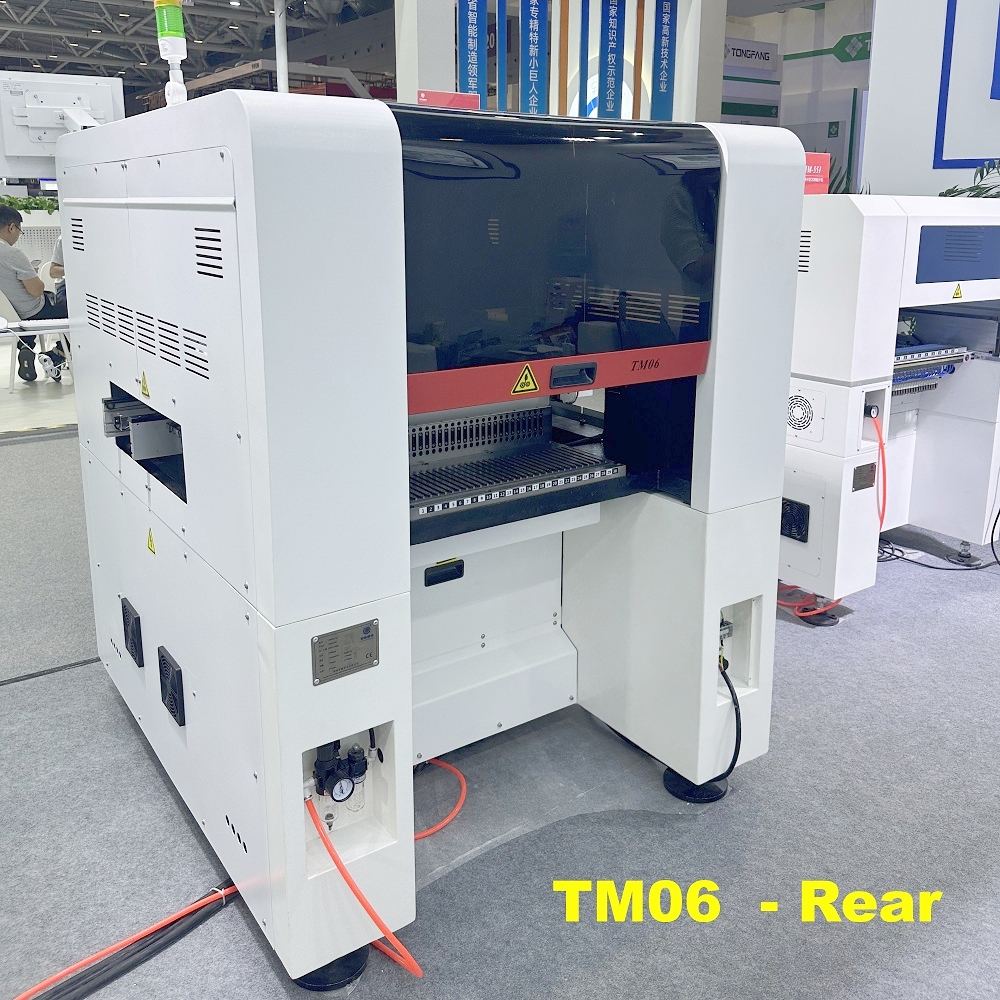

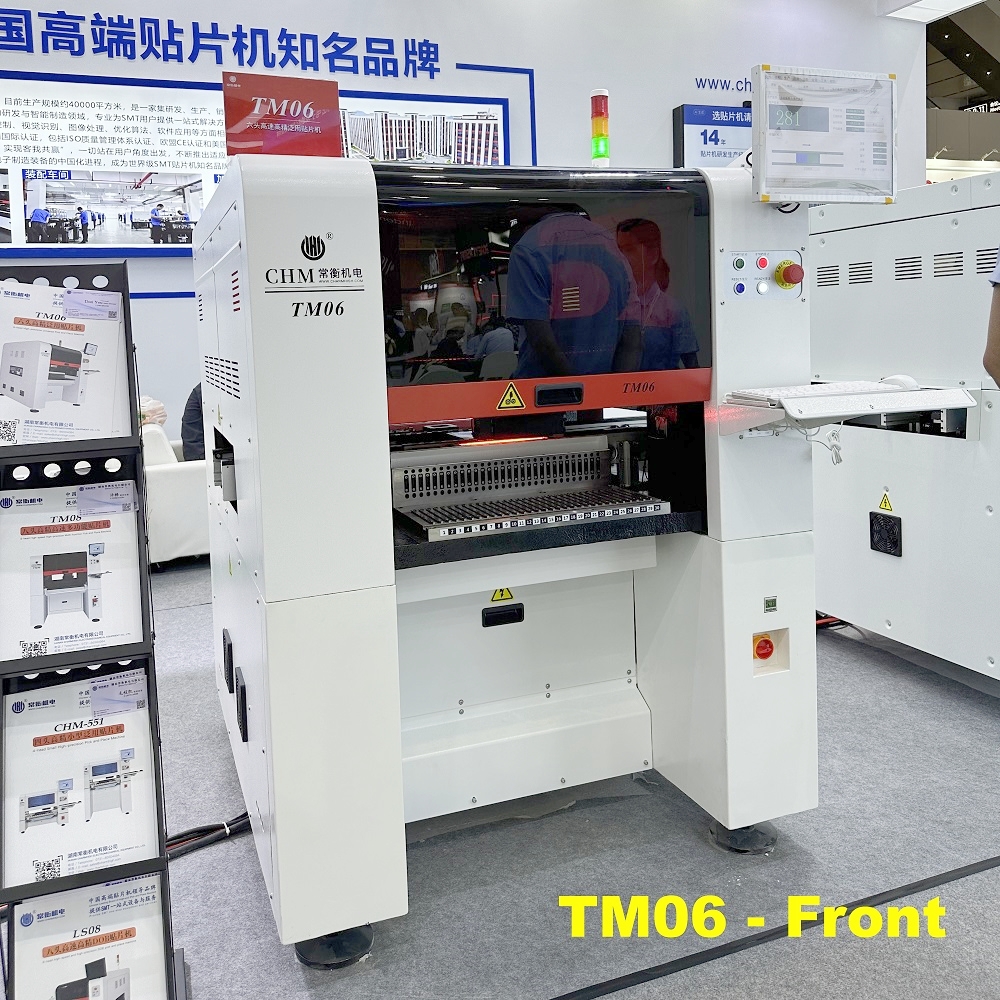

High configuration Charmhigh TM06 Advanced 6 heads SMT pick and place machine
Good for medium SMT assembly line, for PCBA manufacturing
1. Model number: TM06
2. Brand: Charmhigh
3. Main configuration: Automatic 3 pieces PCB auto delivery + 6 Heads 60 feeders + Panasonic servo motor
+ auto nozzle changer(19 positions) + 9 cameras + THK Grinding screw + double Y axis
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area (2 options): 450*350mm / 900*350mm
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 01005, 0201, 0402-5050, SOP, QFN, TQFP, BGA... etc.
8. Dimension: 1320mm(L)×1600mm(W)×1500mm(H), AC220V/110V (50/60Hz, 1 phase)
9. Lead time: 4-6 working days
10. Delivery: by air / by sea / pick up from our factory directly / send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box
Description:
This is TM06, a high-end pick and place machine of Charmhigh.
It is characterized by 60 feeder stacks, good compatibility with NXT electric feeders and stick feeders which could support tubular components.

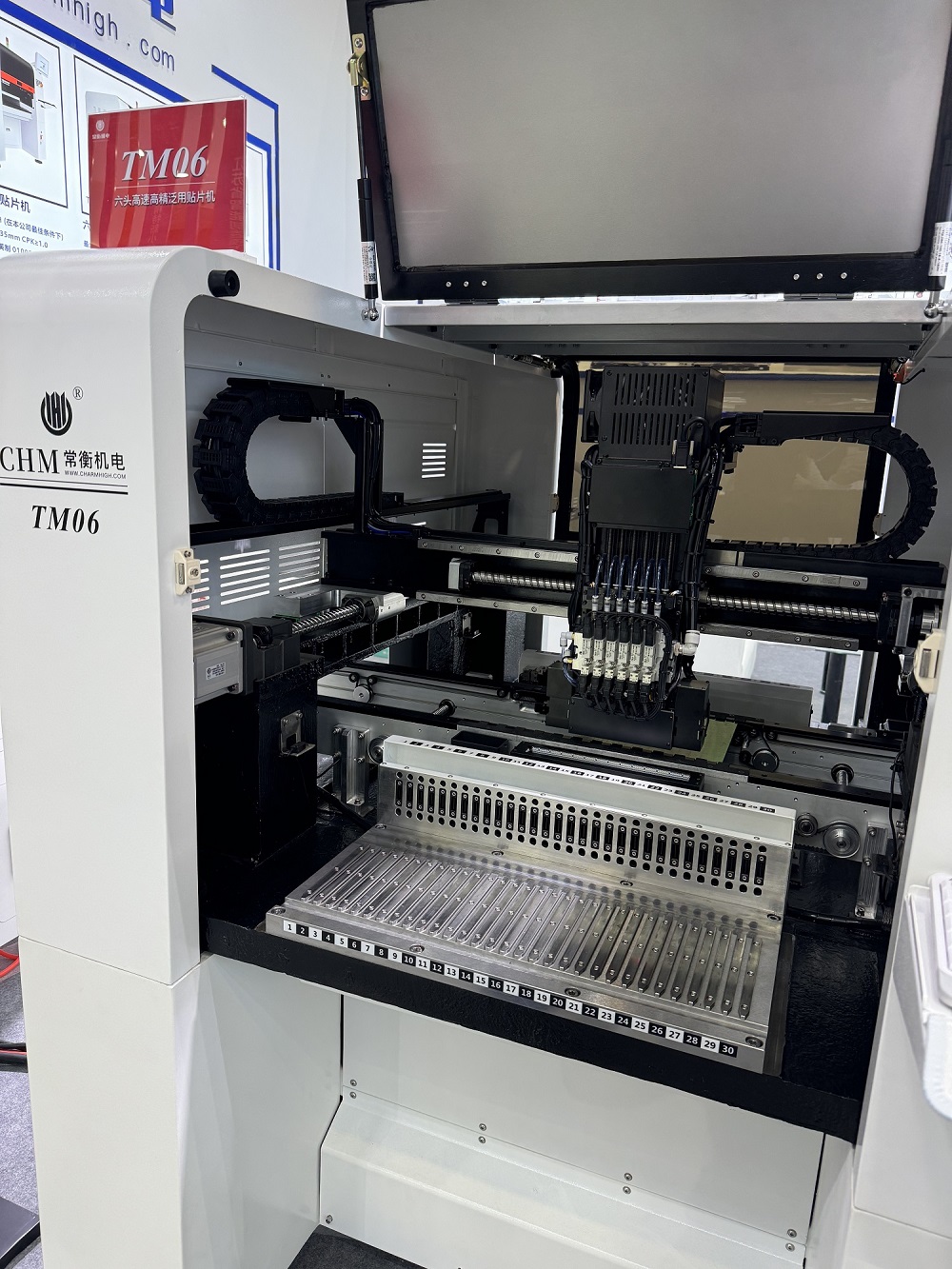

6 heads capable of mounting simultaneously and changing suction nozzles automatically, three-section automatic conveyor belt, high speed motion control system and vision technology applied to take photos of moving components independently researched and developed by Charmhigh itself.
If you need a high configuration pick and place machine with reasonable price for the medium to large sized setups, TM06 is a best choice.
TM06 specification:
| Model | TM06 |
| Dimensions | 1320mm(L)×1600mm(W)×1500mm(H) |
| Weight | 1100kg |
| Power Supply | AC220V (50Hz, single phase), 3kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 6 heads |
| Mounting Speed | 27800cph (optimal); |
| Mounting Accuracy | X,Y axis: ±0.035mm; CPK≥1.0(XY) |
| Control Accuracy | 4μm |
| Component Height | 12mm |
| Component Type | 01005,0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 450mm(L)×350mm(W) (standard); 900mm(L)×350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting TBI ground ball screw and HIWIN linear guide (Y axis with double screws) |
| Feeding System | 60 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
TM06 is a high-confuguration 6 heads SMT pick and palce machine from Charmhigh, It is a perfect model which can meet all customers' demand.

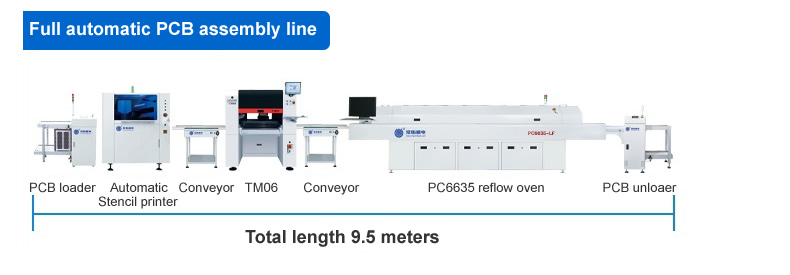

Below is the medium SMT production line:
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% test well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
YouTube video link of Charmhigh: https://www.youtube.com/@KimiLiuCharmhigh/videos
Charmhigh, famouse manuafacturer in China supply directly, quality assurance.
TM06 specification:
| Model | TM06 |
| Dimensions | 1320mm(L)×1600mm(W)×1500mm(H) |
| Weight | 1100kg |
| Power Supply | AC220V (50Hz, single phase), 3kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 6 heads |
| Mounting Speed | 27800cph (optimal); |
| Mounting Accuracy | X,Y axis: ±0.035mm; CPK≥1.0(XY) |
| Control Accuracy | 4μm |
| Component Height | 12mm |
| Component Type | 01005,0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 450mm(L)×350mm(W) (standard); 900mm(L)×350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting TBI ground ball screw and HIWIN linear guide (Y axis with double screws) |
| Feeding System | 60 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
