Three-sided 83 feeder slots D600Plus Desktop 2 heads SMT Pick and Place Machine
With 6-positions automatic nozzle change. High accuracy & Stable
Room saved, very good for small batch production, mix mounting, protopyting, researching, eduction etc. Support 0402 0603 0805 BGA QFN...etc.
Introduction:
1. Model number: D600 Plus
2. Placement accuracy: 0.028mm
3. Main configuration: Desktop type + All axis linear guide rail + 3 vision cameras + 2 x 6 Heads(automatic nozzle change) + 83 feeders supported
4. Max PCB area: 345*355mm
5. Component: 0402-5050, SOP, QFN, QFP, BGA etc.
6. Dimension: 980 x 750 x 400mm, AC220V/110V (50/60Hz)
7. Lead time: 3-5 working days
8. Delivery: by DHL express door to door, total takes 6-9 days.
9. Payment method: wire transfer (T/T); PayPal; credit card; W/U
10. Packing: plywood box
11. HS code: 8479.89.62.00 (Pick and place machine)
Description:
D600 Plus Desktop SMT Pick and Place Machine, High-accuracy Full Vision Chip Mounter with 2 heads x 6-position automatic nozzle change The D600 Plus is a compact, high-precision desktop SMT pick and place machine designed for prototypes, small-batch production, labs, and electronics startups. Equipped with a full vision alignment system and 2 heads x 6-position automatic nozzle changer, support from 0402 to 5050, SOP, QFN, QFP, BGA etc, up to ±0.028 mm repeatability. it delivers professional PCB assembly performance at a industrial line costs. Very suitable for for prototype builders, hobbyists, developers, and development groups and small batches production.
You can use it to produce a variety of designs, 50 to 100pcs at a shot. It works very well for low-volume high-mix pick and place of 0402 based designs.
You can use this machine with or without external computer (two options), very stable and operation very convenient.
Parameter | Specification |
No. of Placement Heads | 2 x 6 (automatic nozzle change, 6 heads) |
Placement Accuracy | 0.028mm |
Package Types | Chip R/C components (0402, 0603, 0805, 1206, etc.); LED lamps (0603, 0805, 3014, 5050, etc.); ICs (SOT, SOP, QFN, BGA, etc.) |
Air Supply | External air source (compressed air 0.5MPa – 0.7MPa) |
Operating System | Microsoft Win7 or above |
Compatible File Formats | CSV, TXT |
Placement Speed | 3,500 components / hour |
Operating Software | Developed by self |
Vision Cameras | 1 standard Mark camera + 2 vision recognition cameras(one small + one big) |
Recognition Capability | Max. 22 × 22mm |
Feeder Capacity (all-aluminum alloy) | Total 83 slots (customizable on all three sides); West side: 8mm x 29; North side: 8mm x 29; East side: 8mm x 18, 12mm x 4, 16mm x 2, 24mm x 1 |
Tube Feeder | 5-tube stick feeder × 1; (optional) Size: 290 × 90 × 140mm |
Feeding Method | Tape reel: 8mm, 12mm, 16mm, 24mm; tray, work station, and tube vibratory feeder |
Board (Substrate) Size | 680 x 590 x 15mm |
Min. PCB Size | 10 x 10mm |
Max. PCB Size | 320 x 329mm (320 x 359mm) |
X / Y Axis Moving Range | 475 x 490mm |
Z Axis Moving Range | 22mm |
Z Axis Rotation Angle | 0 - 360° |
Drive Mode | 20M synchronous belt + linear guide rail |
IC Feeder Slots | 10 slots |
IC Tray | 1 |
Power Supply | 220V (100V) ~ 50Hz / 400W (peak) |
Motor / Drive | Stepper + servo motors |
Machine Overall Dimensions | 980 x 750 x 400mm |
Weight / Packing | 85KG (export wooden case 110 × 82 × 50cm) |
Key Features
1.Two placement heads with 6-head auto nozzle changer – mounts components from 0402 up to QFP/BGA without manual intervention
2.Full vision system – 3 cameras (1 Mark camera + 2 flying vision cameras) for real-time fiducial recognition and component alignment
3.High placement accuracy – up to ±0.028 mm repeatability
4.Speed – up to 3,500 pcs/h (resistor mode), 2,500 pcs/h (full vision mode)
5.83-feeder supported(3-sided) – Total 83 tape feeders supported: West side: 8mm x 29;
North side: 8mm x 29; East side: 8mm x 18, 12mm x 4, 16mm x 2, 24mm x 1 tape feeders, plus 10 front IC tray positions; tube feeder optional
6.Wide component support – 0402, 0603, 0805, 1206, LED, diode, SOP, SSOP, QFN, BGA (up to 22×22 mm)
7.Max PCB size 320 × 329 mm – suitable for most prototype and small production boards
Easy programming – import CSV/TXT coordinate files, online/offline programming, Windows 7 or above
8.All axes linear guide rails, ensuring smooth, precise and low-wear motion during high-speed placement

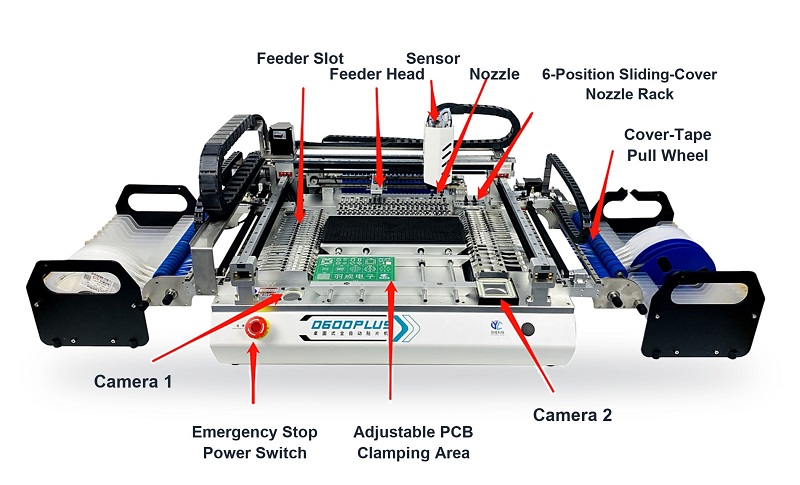

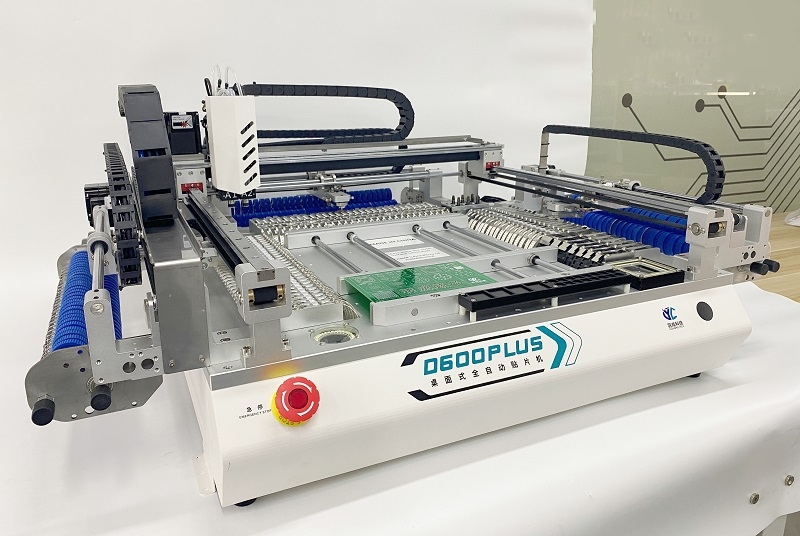

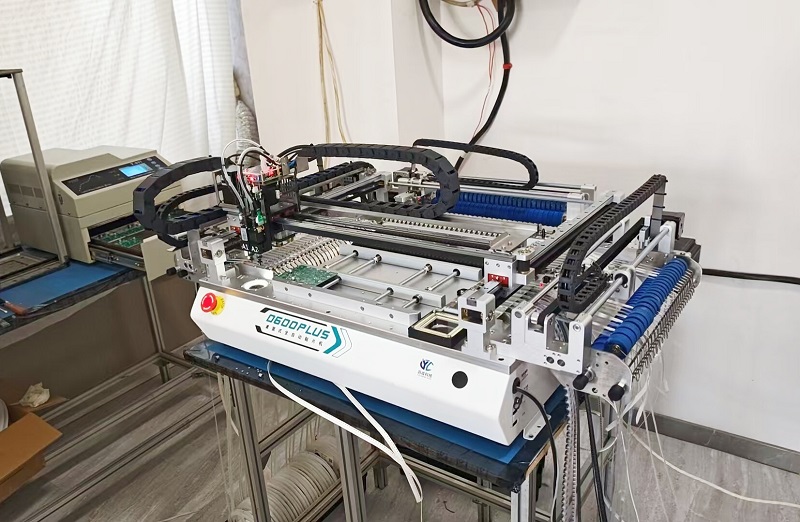

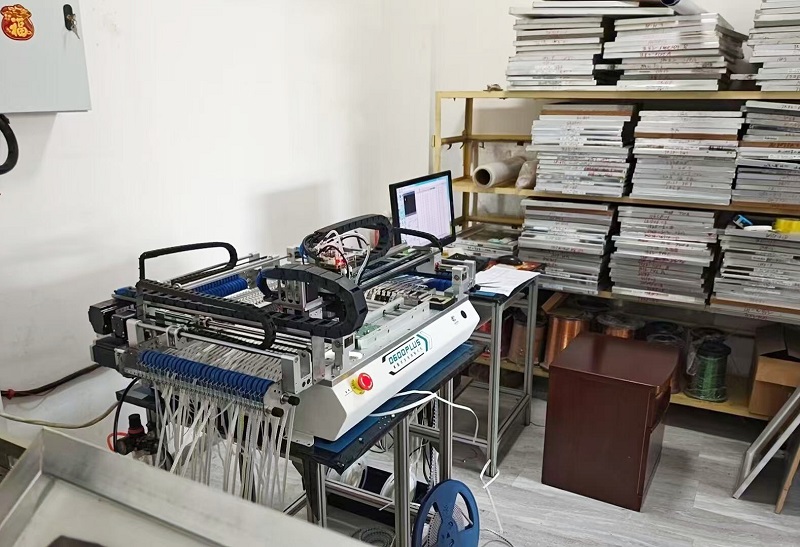

D600 Plus real picture:

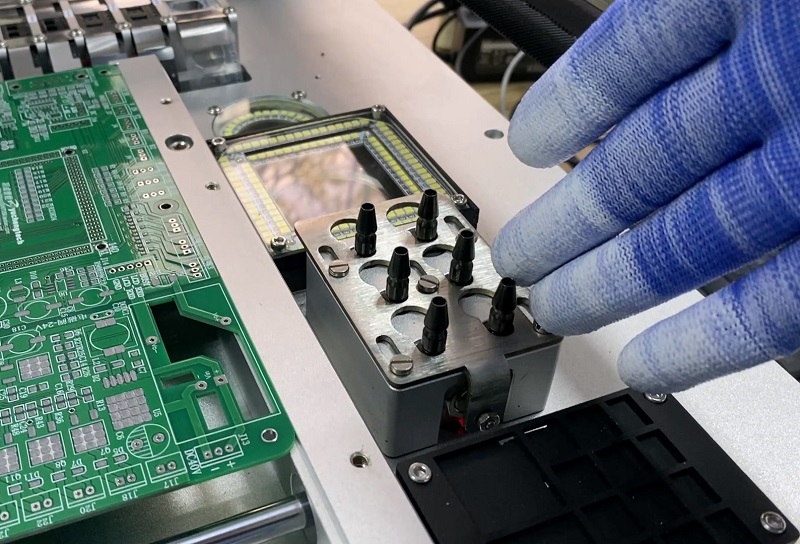

2-head with 6-positions automatic nozzle changer:

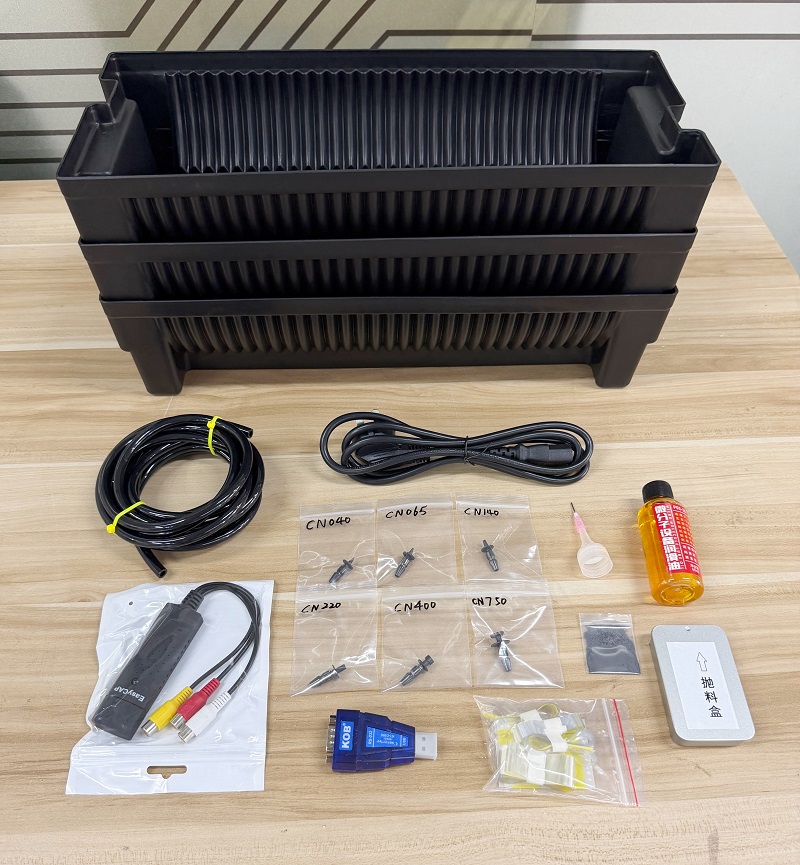

Accessories:
Kindly note:
The D600 Plus pick and place machine is complete set with all accessories included in the package, QC passed. Ready to use.
We provide timely after-sales service, each machine 100% tested well before ship out. Please purchase it with confidence.
Enjoy with your pick and place machine!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
