Embedded Linux System CHMT48VA Table top SMT Pick and Place Machine

+ Vibration feeder (for tube material), Charmhigh chm-t48va Small Batch Prodcution

Introduction:

1. Model number: CHM-T48VA

2. Brand: Charmhigh

3. Main configuration: Desktop type + All -in-one machine + Two vision cameras + Embedded Linux system + 2 Heads 29 tape feeders + Closed-loop control motor with encoder + Touch screen

4. Max PCB area: 355*355mm

5. Component: 0402-5050, SOP, QFN, QFP, BGA etc.

6. Dimension: 960mm(L)×705mm(W)×335mm(H), AC220V/110V (50/60Hz)

7. Lead time: 1-3 working days

8. Delivery: by DHL express door to door, total takes 4-8 days.

9. Payment method: wire transfer (T/T); PayPal; credit card; W/U

10. Packing: plywood box

11. HS code: 8479.89.62.00 (Pick and place machine)

Description:

The CHMT48VA is a low cost good accuracy two heads desktop sized pick and place machine from Charmhigh. You can use it to produce a variety of designs, 50 to 100pcs at a shot. It works very well for low-volume high-mix pick and place of 0402 based designs.

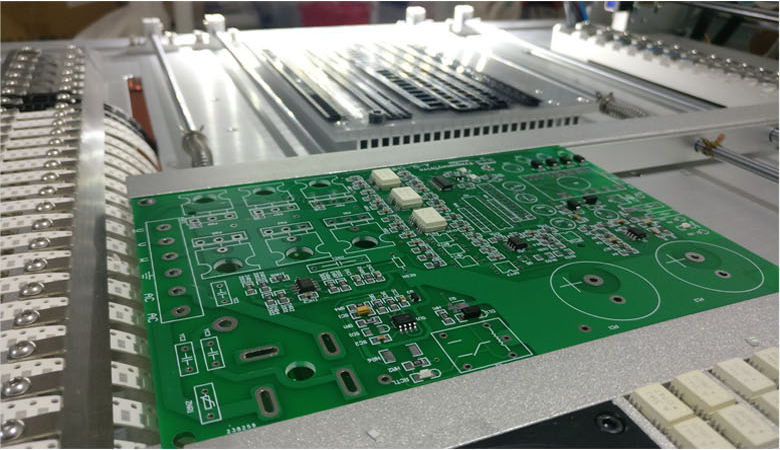

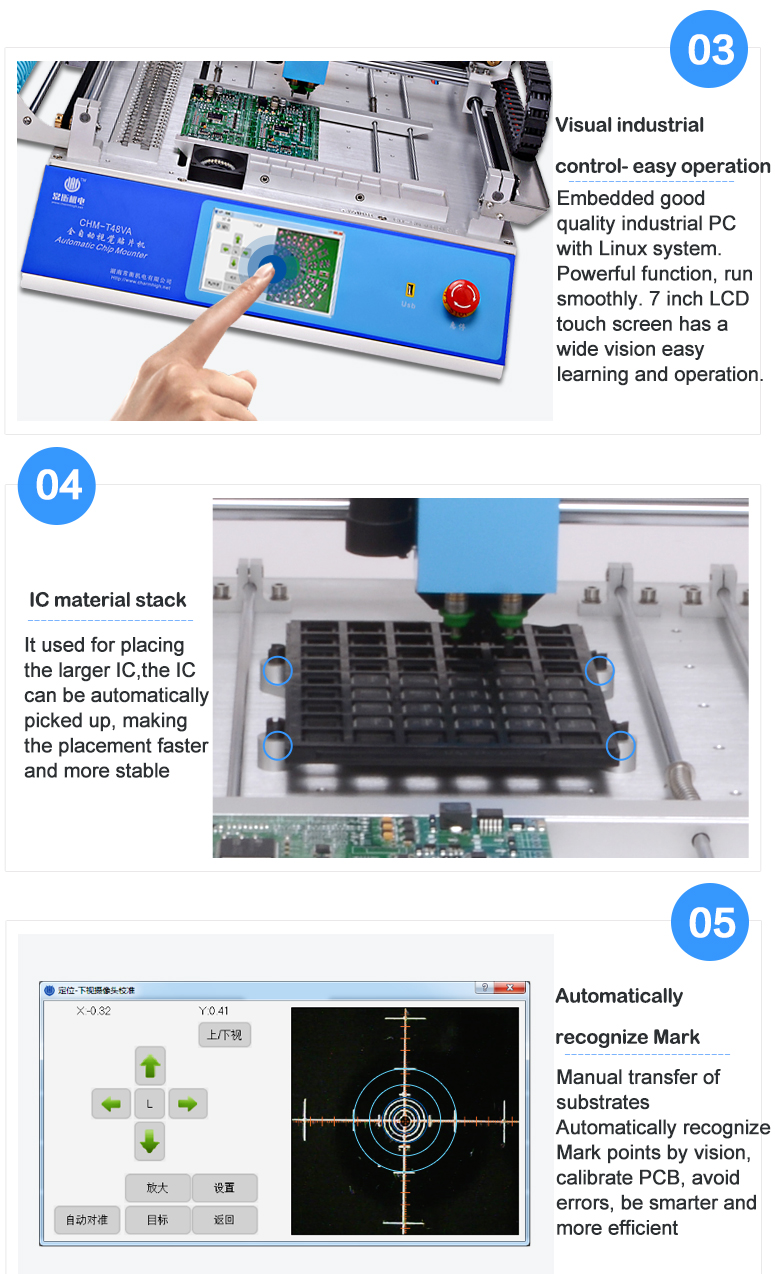

CHMT48VA is a vision-based desktop pick and place machine which is using embedded Linux system, you can use this machine without computer, this is the difference from CHMT36VA.

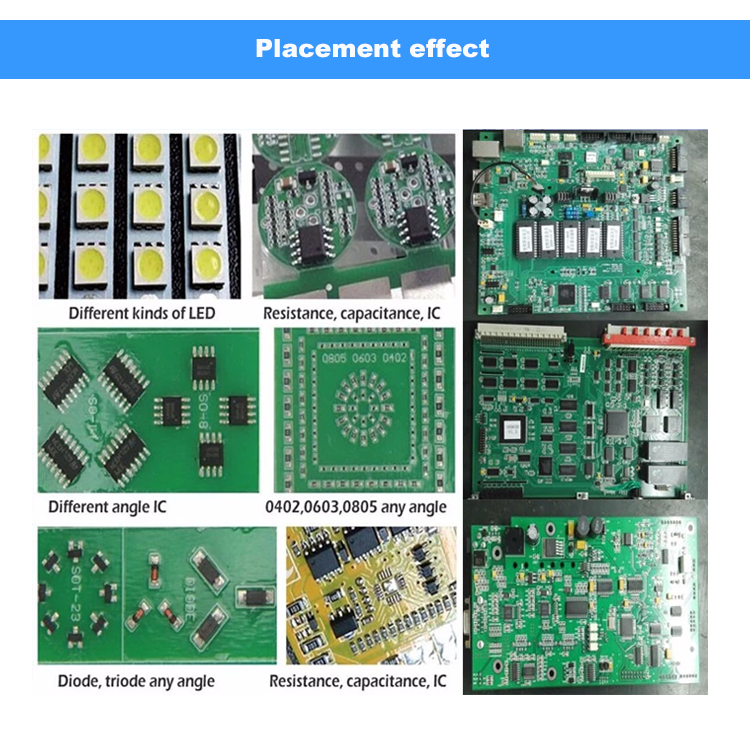

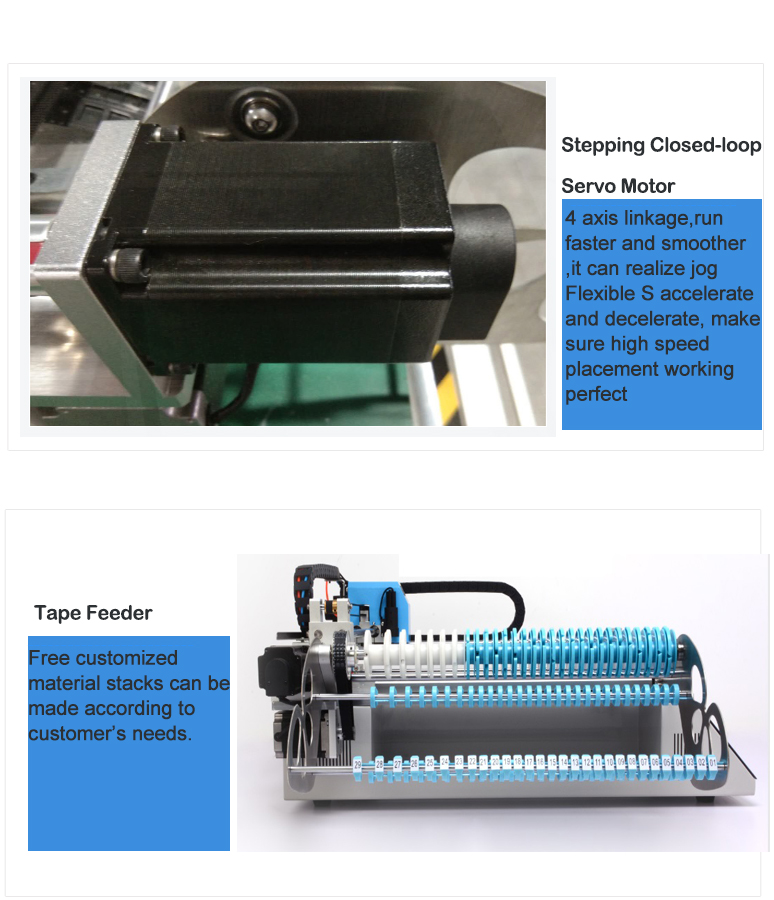

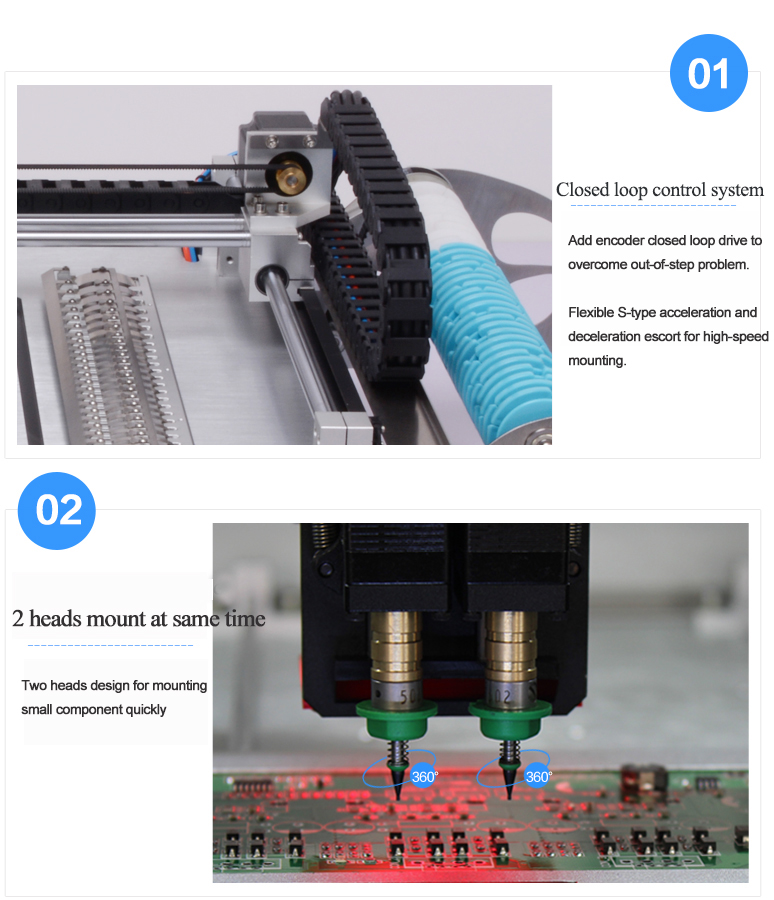

It is very reliable with low-cost economic model, this small platform machine comes with advance vision system, closed-loop control, 29pcs material stacks support 29 tape feeders. High precision and easy to learn.

It compatible with all different kinds of components 0402-5050,SOP, QFN, QFP... very suitable for for prototype builders, hobbyists, developers, and development groups and small batches production.

CHMT48VA compatible software: Altium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence

Allegro,PROTEUS..etc. As long as the software can generates the X.Y coordinates.

Youtube working video:

Table top Vision SMT Pick and Place Machine CHMT48VA:

www.youtube.com/watch?v=7pBjNMQSP54

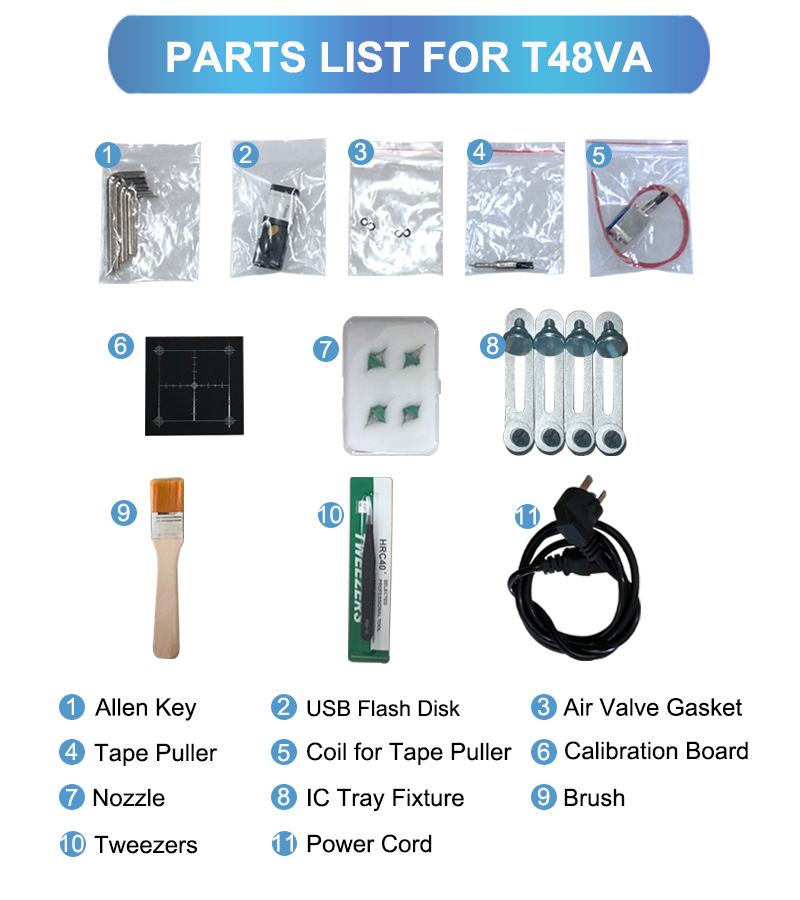

Standard Accessories for CHMT48VA:

1) Pick and Place Machine CHMT48VA: 1

2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)

7) Camera positioning adjust black board: 1

8) Hex wrench: 6

9) Tweezers: 1

10) Brush: 1

11) English user manual: 1

12) Vibration feeder: 1

Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.

Tech support:
Kimi's Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89

E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube: https://www.youtube.com/c/KimiLiuCharmhigh/videos
If you want to know more information, please contact us by E-mail.
We will response you at the first time.

Technical Parameter for CHMT48VA	Dimension	L 960mmW 705mmH 335mm
	PCB Area	1010~355355mm
	XY Axis travel	400*460mm
	Z axis move range	15mm
	Pick and Place head	2pcs
	Mounting Speed	With vision 3000~4000cph; without vision 6000cph-7000cph (Note: cph means chip per hour)
	Working Precision	±0.025mm

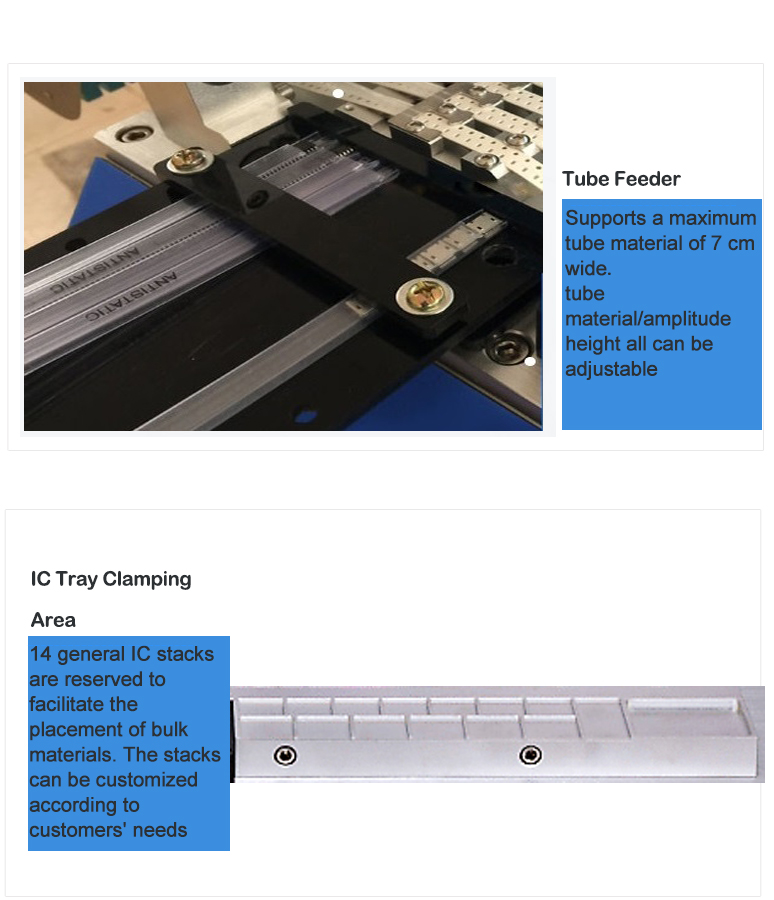

	Stack	8mm=22 stack; 12mm=4 stack; 16mm=2 stack; 24mm=1 stack; Front IC=12 stack; User-defined IC tray=20 stack
	Vacuum pump	2pcs in-build (mute)

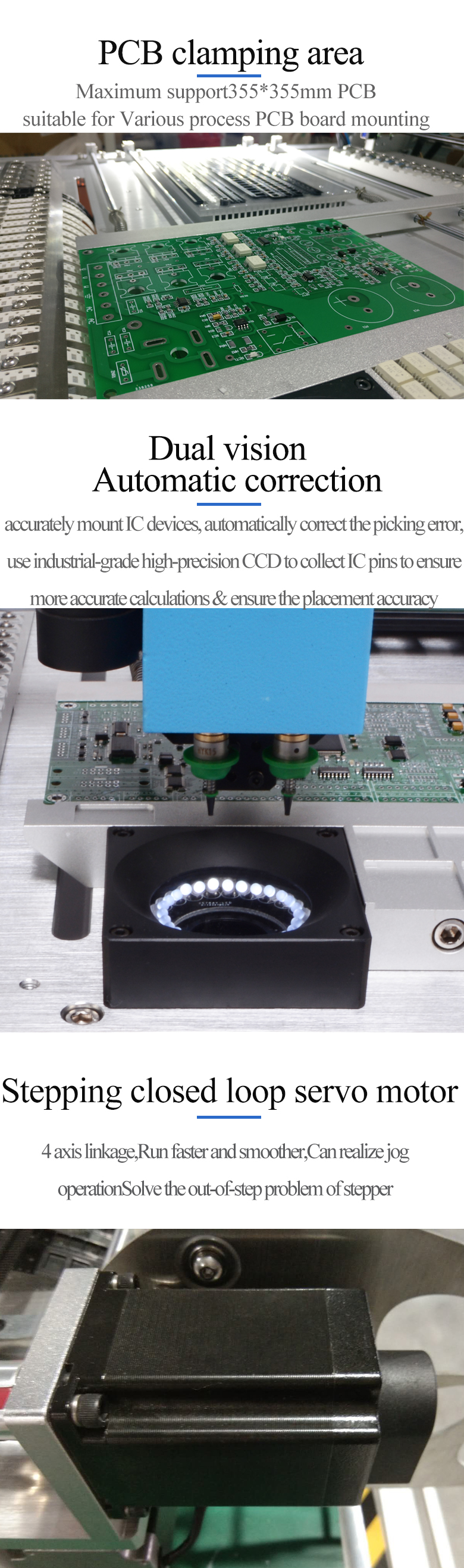

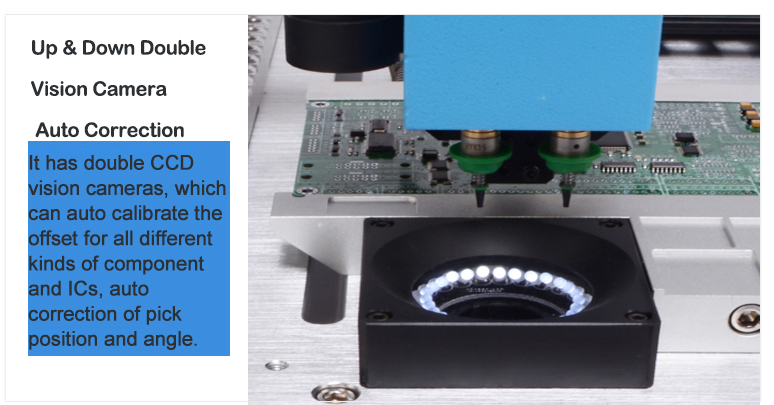

	Vision system	Up view and down view dual cameras
Computer system inside	Linux system inside, very stable, no need external PC
Software to genterate CSV file	By Protel 99SE ; Altium Designer
Support files	.csv file

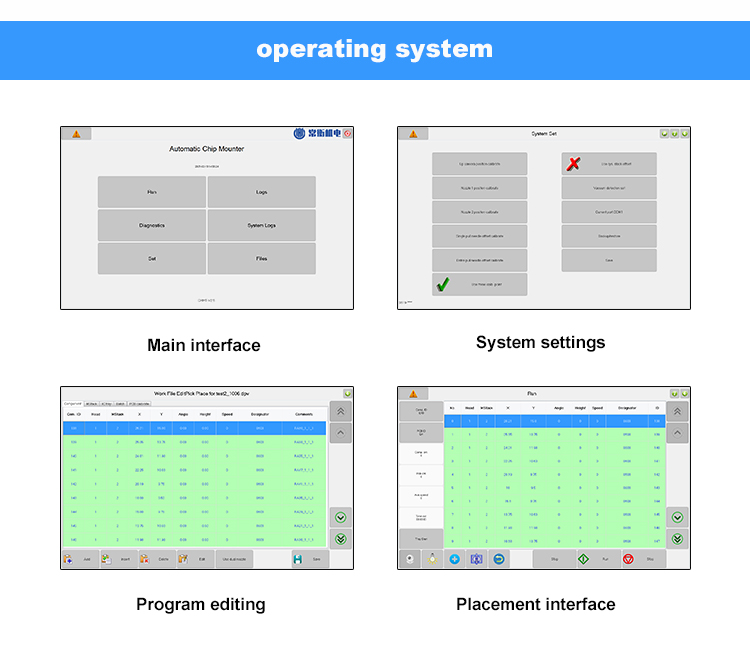

Touch screen	7’’ (15.6cm*9.3cm) industry touch screen
Support packages	0402,0603,0805,1206,1210,3528,5050, SO-16,SOT-23,SOT-89,TO-252,SOP,QFN, LQFP....different kinds of IC (max size 22*22mm)
Voltage	AC 110V/ 220V, 50/60HZ (supply the plug for your country)
Gross weight	73kg (with wooden box packing)

Ask a Question

No data

Average rating:

Share your thoughts with other customers

Write a review

Standard package service:

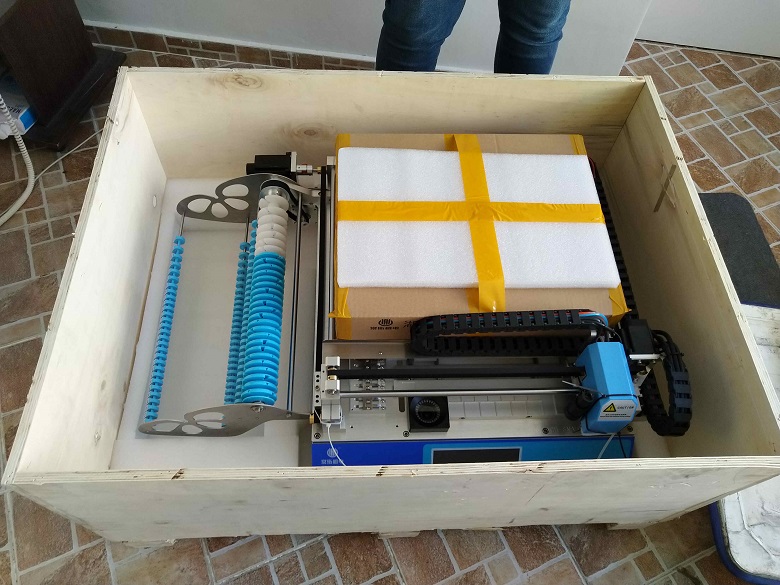

The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
