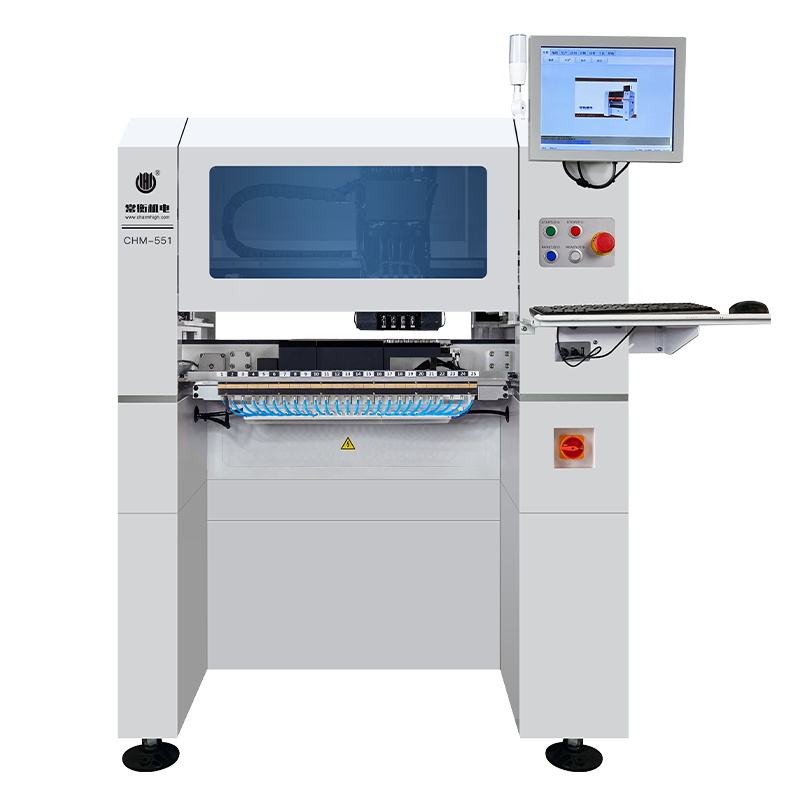

Genius CHM-551 4 heads SMT pick and place machine by Charmhigh
Super high precision, high configuration, easy operation, room saved.
Very good for high precision prototyping & small batch production with high stability.
Description:
This 4 heads CHM-551 designed for precision and ease of use in electronics manufacturing, while its speed is not very high, actual speed 8850 CPH.
It excels in accuracy, capable of handling 0201 components with remarkable precision and has passed rigorous CPK testing.
Its compact design fits perfectly into prototyping and small to medium production setups.
Which is one of the most advanced small mounter on the market.
CHM-551 SMT Pick and Place Machine (with Auto Nozzle Change) suitable high precision prototyping and economic solution for SMT assembly.
if you want a high precision room-saved machine, this one is your best choice!
CHM-551 Parts List
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
| CHM-551 Specifications | |
| Dimensions | 1050mm(L) x1050mm(W) x 1360mm(H) / 885mm |
| Weight | 260kg & 310kg |
| Power Supply | AC220V (50Hz,single phase) 1.5kw |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 11500CPH (optimal) ; IPC9850: 8850cph |
| Mounting Accuracy | (XY)±0.05mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 25mm×25mm); Mark camerax2 |

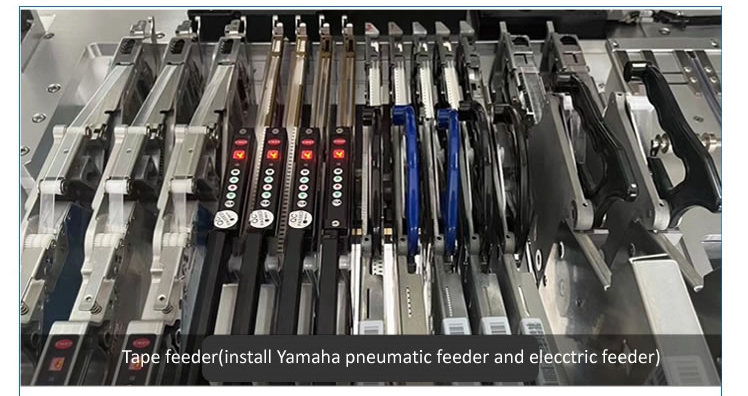

Work with Yamaha electric feeder and pneumatic feeder (purchase separately):
Yamaha Electric feeder for CHM-551, option: 8/12/16/24/32mm:
Customer feedback 100% good:
Kindly note:
The CHM-551 smt pick and place machine only need to connect external air source which is prepared by yourself, no need other stuff.
The machine has passed QC passed before ship out.
We provide timely after-sales service, each machine 100% tested well before ship out. Please purchase it with confidence.
Enjoy with your pick and place machine!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machines, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one-to-one after-sale service. Each machine 100% tested well before shipping out.
Tech support & Contact:
Kimi Liu
Charmhigh Technology Limited
Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube: www.youtube.com/kimiLiuCharmhigh
If you want to see more information and videos, please contact us by E-mail. We will reply as soon as possible.
1. Model number: CHM-551
2. Brand: Charmhigh
3. Main configuration: High precision 0201 support CPK ≥1.0 + 4 heads 50 feeders + Vertical type + Ball screw with & linear guide + Auto nozzle change + Servor motor + 7 cameras + Yamaha feeders supported + Thermal Compensation
4. Max PCB area: 350*270mm
5. Component: 0201, 0402-5050, SOP, QFN, QFP, BGA etc.
6. Dimension: 1050mm(L)*1050mm(W)*1360mm(H), AC220V (50Hz)
7. Lead time: 2-5 working days (hot model in stock)
8. Delivery: by sea door to door, including shipping, duty, taxes.
9. Payment method: wire transfer (T/T); PayPal; credit card; W/U
10. Packing: plywood box
11. HS code: 8479.89.62.00 (Pick and place machine)
Question: What is CPK test? By A***y on 2024-10-24
Answer: CPK refers to the process capability index, it is a measure of how consistent and accurate a pick-and-place machine is in its production, If the CPK is high, it means the machine is really good at placing components exactly where they need to be. If the CPK is low, it might mean the machine is not so good at it, and there could be more mistakes in the assembly process. It tells us how stable the machine's quality is during manufacturing. CPK < 1: Poor; 1 ≤ CPK < 1.33; CPK ≥ 1.33: excellentBy Charmhigh Technology on 2024-10-25
