Highest Configuration CHM-650 Desktop SMT Pick and Place Machine CPK test passed CPK≥1.0 (XY)
3 Pieces Auto PCB Conveyor, 4 Heads 50 Feeders, Ball Screw, Servo Motor (with Auto Nozzle Change) for SMT Batch Production 0201 perfect mounting
This 4 heads small CHM-650 is the most stable with highest precision model in the SMT market.
Room saved, very good for small batch production with high stability.
Introduction:
1. Model number: CHM-650
2. Brand: Charmhigh
3. Main configuration: High precision 0201 + Auto PCB conveyor + 4 heads 50 feeders + Desktop type + Ball screw with & linear guide + Servor motor + 7 cameras + Yamaha feeders supported
4. Max PCB area: 400*350mm
5. Component: 0201, 0402-5050, SOP, QFN, QFP, BGA etc.
6. Dimension: 1280mm(L)*1190mm(W)*1050mm(H), AC220V (50/60Hz)
7. Lead time: 2-3 working days
8. Delivery: by DHL door to door, by air, by sea, or pick up from our factory, or ship to shipping agent , contact us for more shipping options.
9. Payment method: wire transfer (T/T); W/U
10. Packing: plywood box
11. HS code: 8479.89.62.00 (Pick and place machine)
Description:
This is an updated model from Charmhigh, it has high configuration and higher preicision, if you want a high precision machine, this one is your best choice! This model has 3 pieces auto PCB conveyor, it can connect with SMT conveyor desk and reflow oven, delivery PCB into reflow oven.
Youtube working video:
www.youtube.com/c/KimiLiuCharmhigh/videos
CHM-650 Specifications | |
Dimensions | 1280mm(L)x1190mm(W)x1050mm(H) |
Net weight | 320kg |
Power Supply | AC220V (50Hz, 1 phase), 1.6kW |
Air Supply | 0.5MPa ~ 0.7MPa |
Vacuum Generation | Vacuum generator |
Mounting Head | 4 Heads |
Mounting Speed | 10000cph(optimal) |
Mounting Accuracy | ±50μm@μ±3σ/chip |
Control Accuracy | 5μm |
Component Height | 12mm |
Component Type | 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
PCB Thickness | 0.6mm~3.5mm |
PCB Size | 400mm(L)x350mm(W) |
PCB Conveying | 3-section-rail automatic conveying |

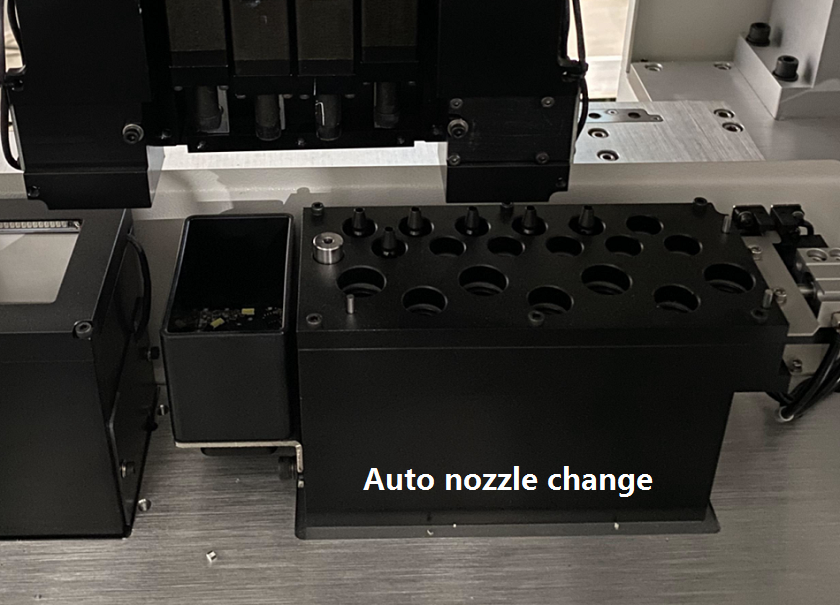

Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
Transmission System | Ball screw + linear guide |

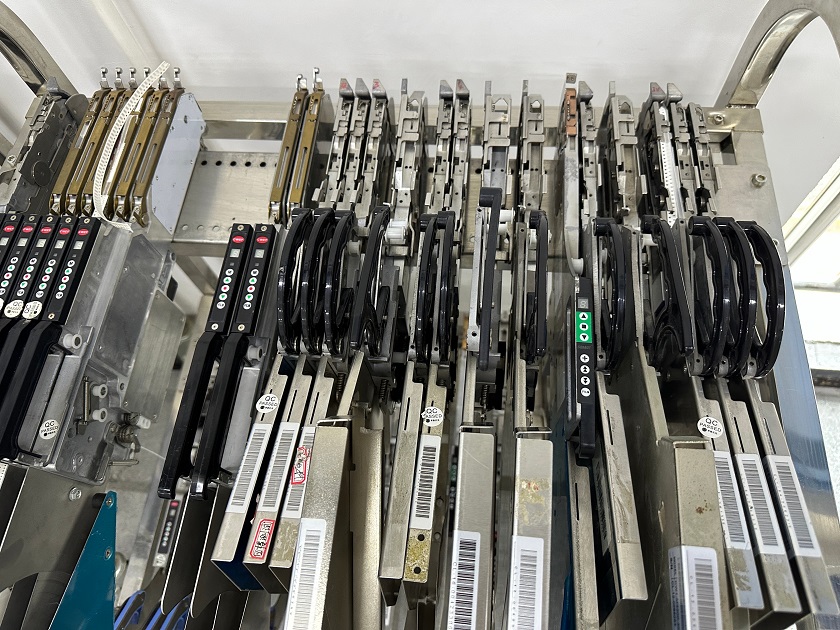

Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder slots (also suitable for IC tray and stick feeder) |
Vision System | Snapshot camerax4 (component size applicable: 16mmx16mm); IC camerax1 (component size applicable: 36mmx36mm); Mark camerax2 |
Note: This link CHM-650 pick and place machine unit price $8600 USD (not including shipping)
Please contact us for more shipping options, our e-mail: kimi@charmhigh-tech.com
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
