This link CHM-551P pick and place machine unit price $9000 (not including shipping)
It will be shipped by sea, please contact us for more shipping details, our e-mail: sales@charmhigh-tech.com

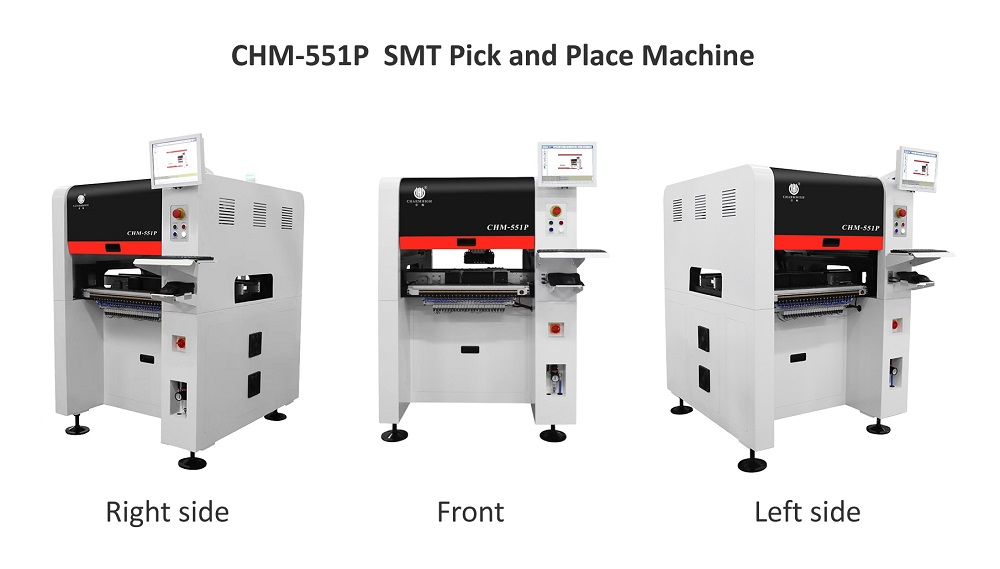

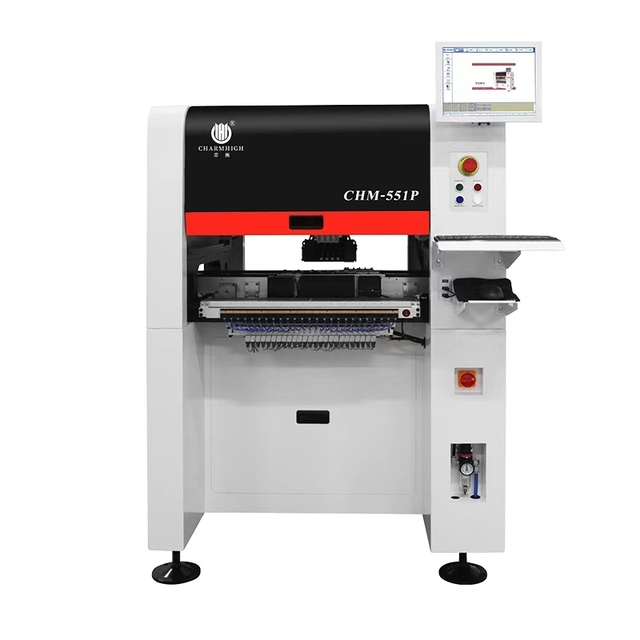

Upgrade CHM-551P 4-head SMT pick and place machine by Charmhigh (updated from CHM-551)
Higher speed 14400 CPH, higher precision 0201~30*30mm area, cast-iron frame with high stability. Very stable with high precision, 0201 perfect mass production, the best 4 heads model in China.
Automatic PCB conveyor, 50 Feeders 4 heads SMT pick and place robot. CHM-551P SMT Pick and Place Machine (with Auto Nozzle Change) for SMT Batch Production. 0201 supported. CPK Test support. Economic solution for SMT assembly, small batch production.
| Dimensions | 1020mm(L) x 1180mm(W) x 1450mm(H) |
| Weight | 556kg |
| Power Supply | AC220V (50Hz, single phase) 1.5kw (average power 350w) |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 14400CPH (optimal) |
| Mounting Accuracy | (XY)±0.035mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) 0201 to larger component 30*30mm size |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Linux system, equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 30mm×30mm); Mark camerax2 |
Updated Features Compared with CHM-551

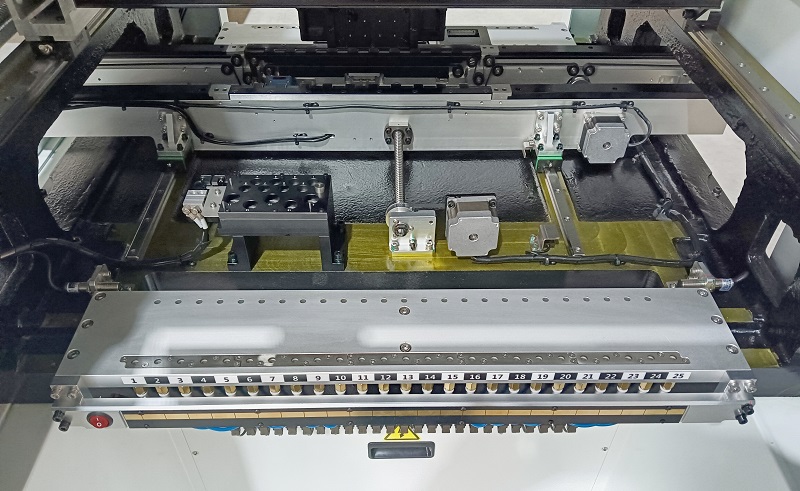

Cast-iron structure:

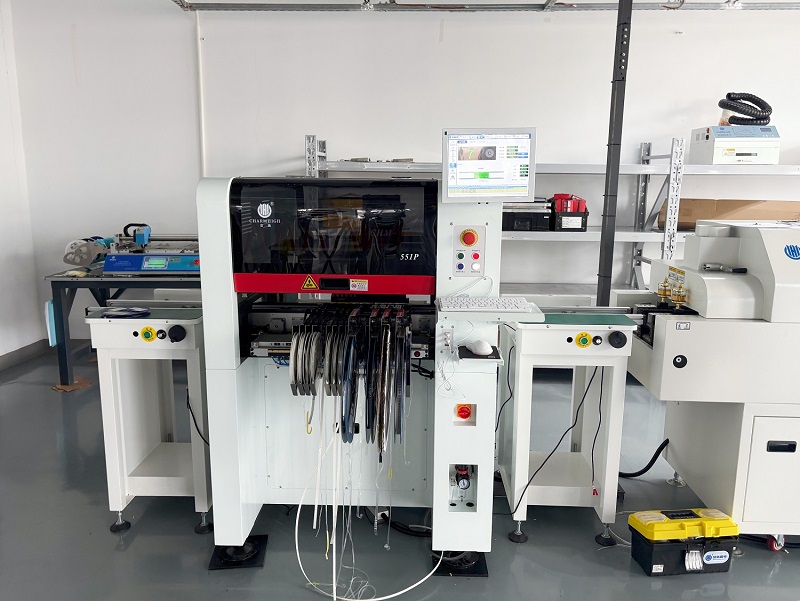

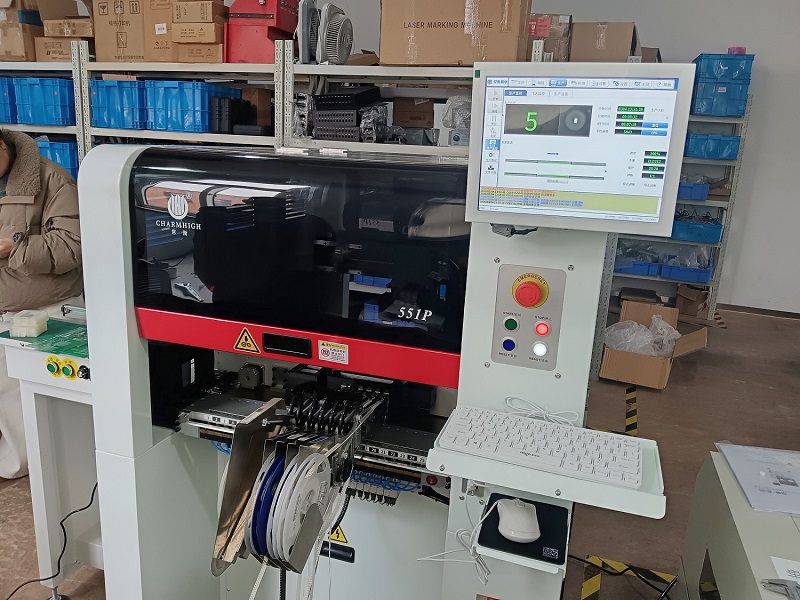

Customer feedback:
Purchase separtely:
1. Electric feeder/ pneumatic feeder/ vibration feeder
2. Yamaha feeder cart
3. IC tray
Our Charmhigh factory got IOS9001, please purcahse equipment from excellent factory.
| Dimensions | 1020mm(L) x 1180mm(W) x 1450mm(H) |
| Weight | 556kg |
| Power Supply | AC220V (50Hz, single phase) 1.5kw (average power 350w) |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 14400CPH (optimal) |
| Mounting Accuracy | (XY)±0.035mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) 0201 to larger component 30*30mm size |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Linux system, equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 30mm×30mm); Mark camerax2 |
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
